HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$99,999.00 - $119,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA HSll15L
Dimension(L*W*H) :
6.8x6.4x3.6
Hollow part volume :
1-15L
Clamping Force (kN) :
158
Extruder Motor Power(kW) :
75 kW
Mold Platen Size(Width)(mm) :
730 mm
Mold Platen Size(Height)(mm) :
540 mm
Station :
double

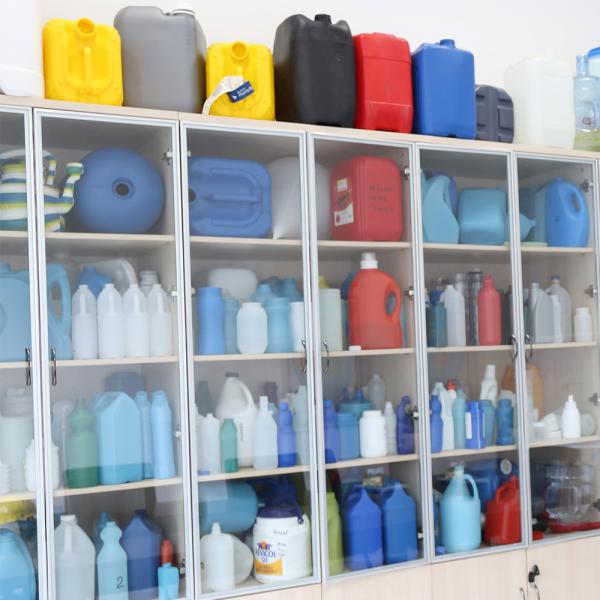

Suitable bottle :
1-15L
Description

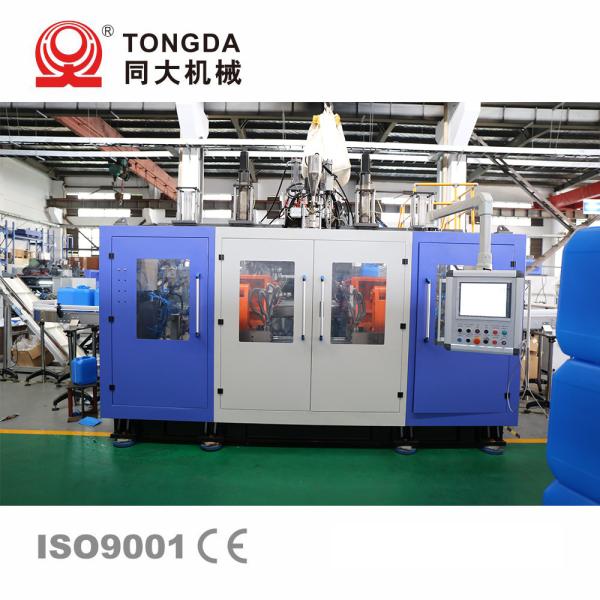

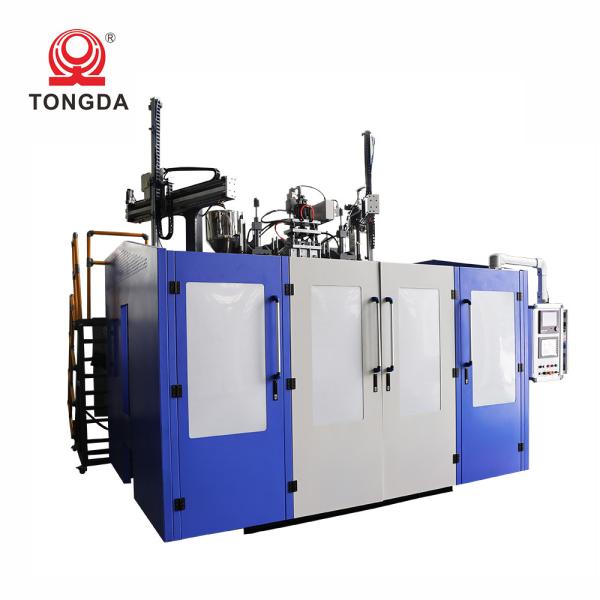

TONGDA HSll15L Plastic extrusion blow molding machine for HDPE bottles plastic blow moulding machine
Product Description

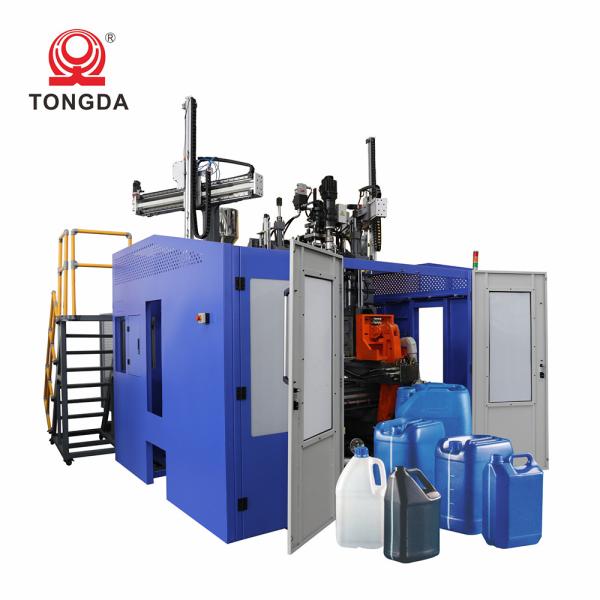

This is our best series machine. This is hydraulic servo system. The clamping unit is elbow style and the clamping force is more uniform. It is high speed and energy-saving. This machine is suitable for stacking product, jerry can, etc. It can be also equipped with several die-heads and then to make the small product.
MODEL
Units
HSII-15L
Remarks: The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection. If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
15
Output of HDPE
kg/h
110
Clamping force
kn
110
Screw diametre
mm
80
Screw heating power
kw
19
Blow pressure
mpa
0.6
Size of machine
m
4.5x2.7x3.1
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
Product Details
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles

15 Inches

Color Control Screen

More Convenient Operatio

HDPE Blowing Moulding Machine high speed For Making Plastic Bottles

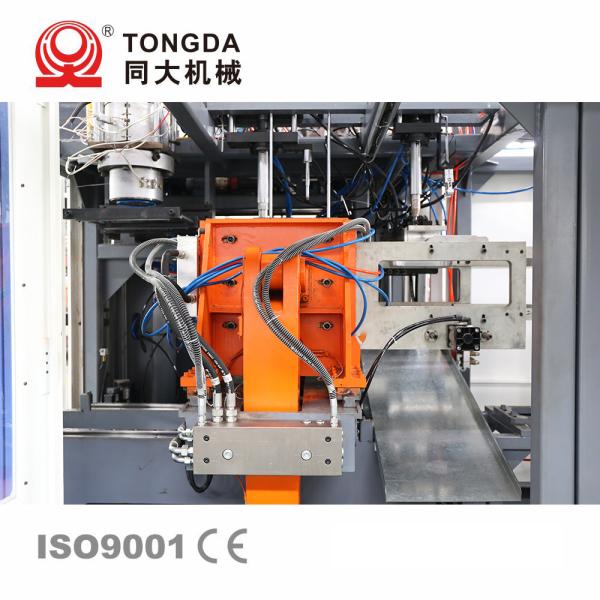

Servo Valve:

High Speed, high precision, energy-efficient, advanced servo system

Company Information
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas. Warmly welcome new and old customers to visit, to guide, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.
HDPE Blowing Moulding Machine high speed For Making Plastic Bottles
Service Marketing Network
1. Over four thousand Tongda machines have been serving customers all over the world.
2. The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3. our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa, Indonesia, Egypt, Syria, Ethiopia.
FAQ
TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. A free 2-day training course will be provided to customers every year.
5. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
