300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
Specifications
Brand Name :
TONGDA
Model Number :
HTSII-12L/4
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
USD 81,199~89,999 per set
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Station :
Double
Dry cycle :
700*2
Screw Diametre :
90mm
Output of HDPE :
130 kg/hour
Clamping force :
158KN
Mold moving stroke :
240-620mm
Max.Size of Mold :
540*500mm
Air consumption :
0.8 m3/min
Description

Tongda HTSll-12L Double Station 4 Cavities Extrusion Blow Molding Machine For 300ml to 500ml Disinfectant Bottles Making

Product Description

This HTS series machine is our most cost effective series machine. HTSII-2L machine is suitable for producing HDPE bottles size below 2 liters. If equipped with multi heads die-head, it also suitable for small HDPE/PP plastic bottles blow molding.E.g:baby lotion / clean-up cleaner detergent liquid / household cleaning bottles wash cleaner,etc.

The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.

Technical Parameters
MODEL
Units
HTSll-2L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
2
Output of HDPE
kg/h
60
Clamping force
kn
44
Screw diametre
mm
60
Screw heating power
kw
11.2
Blow pressure
mpa
0.6
Size of machine
m
4.1*2.6*2.7

Product Details

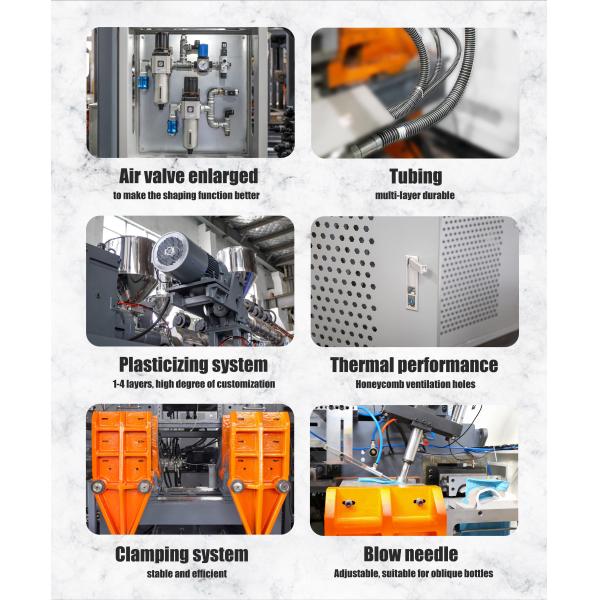

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities

Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles

300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities

Company introduction

Our Machinery has been keeping good cooperative relationship with customers since our establishing.

The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.

300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities

After-sales service

300ml - 500ml Disinfectant Daily Chemical Bottle Blow Molding Machine 4 Cavities
Arrange engineer to customer's factory

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
