12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$64,999.00 - $89,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA HTSll12L
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Year :
2020
Voltage :
Customized to customer needs
Dimension(L*W*H) :
3.2m*2.12m*2.55m
Hollow part volume :
1-12L
Clamping Force (kN) :
158
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
25
Screw diameter (mm) :
90 mm
Output (kg/h) :
130 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
7
Screw Heating Power(kW) :
17.4 kW
Extruder Motor Power(kW) :
37 kW
Mold Platen Size(Width)(mm) :
540 mm
Mold Platen Size(Height)(mm) :
500 mm
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
0.8 m³/min
Die Head Heating Power(kW) :
15 kW
Accumulator Capacity(L) :
0 L
Power (kW) :
78.5
Weight (T) :
11
Key Selling Points :
Long Service Life
Warranty :
1 Year
Applicable Industries :
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Rotary Cylinder Brand :
FESTO
Station :
Double Station
Suitable bottle :
1-12L
Key words :
Automatic Extrusion Blow Moulding Machine
Packing :
Wooden
Use :
Hollow Moulding
Parison Control :
MOOG
Max. Size of Mold :
540*500
Hydraulic valve :
Yuken
Color :
White
Port :
shanghai
Description

TONGDA HTSll12L Fully automatic 12 liter extrusion blow molding machine

Product Description

This is our normal series machine.It is double station. This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for bottles. E.g:Dspray bottle / wide mouth jar / wet tissue jar

Technical Parameters

MODEL Units HTSII-12L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 12
Output of HDPE kg/h 130
Clamping force kn 158
Screw diametre mm 90
Screw heating power kw 17.4
Blow pressure mpa 0.6
Size of machine m 4.3*2.96*3.1

Product Details

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic

Company Information

Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic

After-sales services

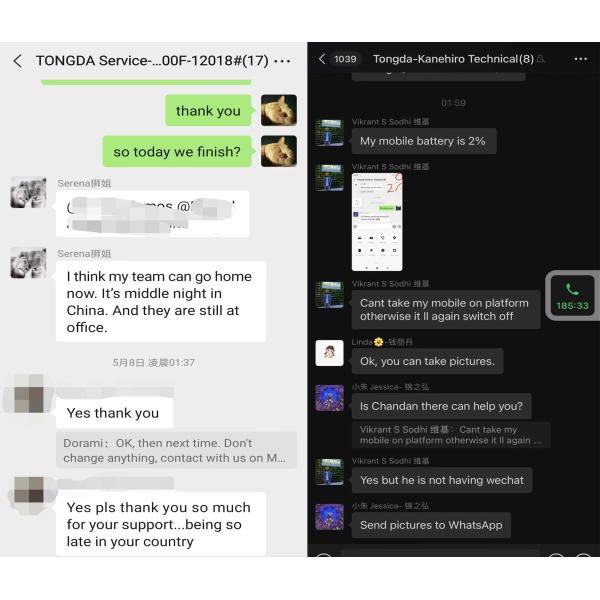

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

12 Liter Extrusion Daily Chemical Bottle Blow Molding Machine Fully Automatic

FAQ

TONGDA sales consultant

1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
