HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
Specifications
Place of Origin :
JIANGSU, CHINA
Model Number :
HTS-II-2L
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$29,999.00 - $44,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Plastic Processed :
PP, PC, PVC, HDPE, LDPE, HDPE/PP, PE/PP
Style :
Horizontal
Distance between Tie Bars(Width)(mm) :
320mm
Distance between Tie Bars(Height)(mm) :
360mm
Ejector Stroke(mm) :
370 mm
Ejector Force(kN) :
44 kN
Theoretical Shot Volume(cm³) :
2000 cm³
Injection Rate (g/s) :
13.9 g/s
Machine Type :
Electric
Injection Weight (g) :
400 g
Screw Speed (rpm) :
500 - 1000 rpm
Screw diameter (mm) :
60 mm
Screw L/D Ratio :
25
Distance between Tie Bars :
370mm
Weight (KG) :
4000 kg
Type :
Injection Blow Molding
Open Stroke(mm) :
370 mm
Power (kW) :
39 kW
Warranty :
1 Year
Key Selling Points :
High Productivity
Applicable Industries :
Hotels, Garment Shops, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Food Shop, Food & Beverage Shops
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Gearbox, Screw
After-sales Service Provided :
No after-sales service
Opening Stroke :
138-368
Product name :
maquina sopladora de botella
Keyword :
Small Plastic Product Making Machine
Color :
White
Usage :
Make Small Plastic Products
Max mould height :
360x320mm
Product Keywords :
double-station
Size of machine :
3.2X2.12X2.55
Port :
SHANGHAI
Description

TONGDA HTSII2L HDPE plastic shampoo high speed bottle blowing making machine

Product Description

This HTS series machine is our most cost effective series machine. HTSII-2L machine is suitable for producing HDPE bottles size below 2 liters. If equipped with multi heads die-head, it also suitable for small HDPE/PP plastic bottles blow molding.

The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.

Technical Parameters
MODEL
Units
HTSll-2L
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
2
Output of HDPE
kg/h
60
Clamping force
kn
44
Screw diametre
mm
60
Screw heating power
kw
11.2
Blow pressure
mpa
0.6
Size of machine
m
4.1*2.6*2.7

Product Details

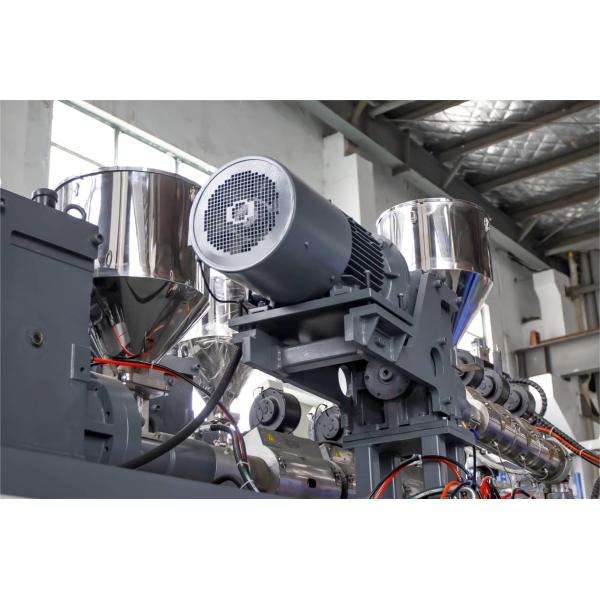

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
Our Advantages

Hydraulic valve group, cost effective, fast reaction, the clamping force is strengthened for the molding locking

HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed

Company introduction

Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed

After-sales service

HDPE Plastic Shampoo Bottle Blow Molding Machine Horizontal High Speed
Arrange engineer to customer's factory

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
