Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$74,999.00 - $89,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA HSll12L
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Application :
Bottle
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Year :
2019
Voltage :
Customized to customer needs
Dimension(L*W*H) :
6.2x5.5x3.3
Hollow part volume :
1-12L
Clamping Force (kN) :
158
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
25
Screw diameter (mm) :
100 mm
Output (kg/h) :
200 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
7
Screw Heating Power(kW) :
21 kW
Extruder Motor Power(kW) :
45 kW
Mold Platen Size(Width)(mm) :
590 mm
Mold Platen Size(Height)(mm) :
500 mm
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
0.8 m³/min
Die Head Heating Power(kW) :
15 kW
Accumulator Capacity(L) :
0 L
Power (kW) :
96.1
Weight (T) :
15
Key Selling Points :
Long Service Life
Warranty :
1 Year
Applicable Industries :
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Rotary Cylinder Brand :
FESTO
Station :
double
Suitable bottle :
1-12L
Key words :
Automatic Extrusion Blow Moulding Machine
Packing :
Wooden
Use :
Hollow Moulding
Parison Control :
MOOG
Max. Size of Mold :
590*500
Hydraulic valve :
Yuken
Color :
Blue
Port :
SHANGHAI
Description

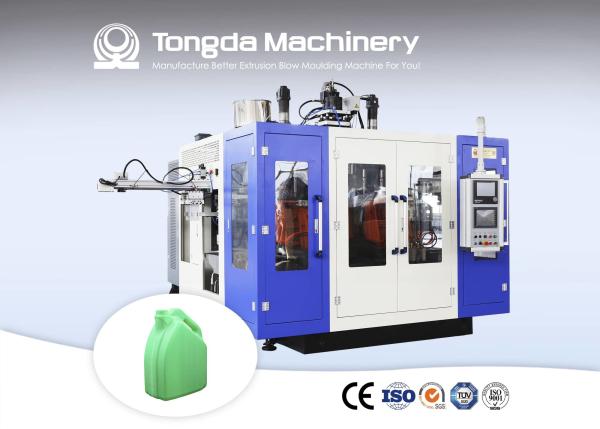

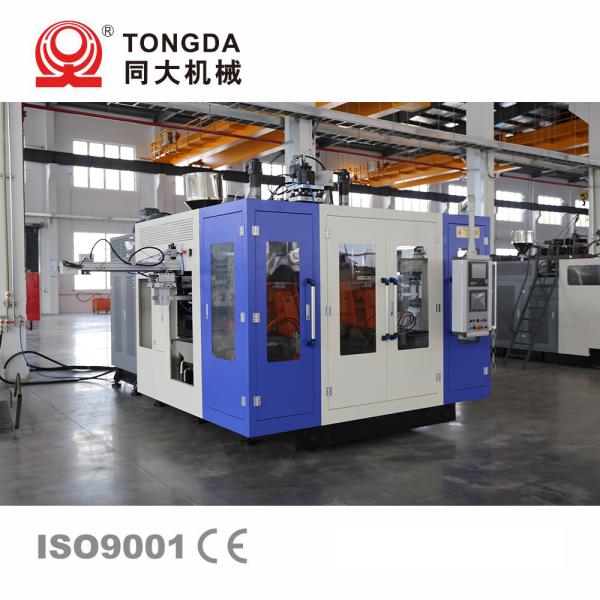

TONGDA HSll12L 4 Cavity Pe Pp Hdpe Plastic Bottle Blow Hollow Moulding Machine

Product Description

This is our best series machine.This is hydraulic servo system.The clamping unit is elbow style and the clamping force is more uniform.It is high speed and energy-saving. This machine is suitable for Daily chemical vegetable wash fruit cleaning /cream lotion cosmetic bottle / jar / toilet liquid cleaner bottle, etc.It can be also equipped with several die-heads and then to make the small product.

Technical Parameters

MODEL Units HSII-12L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 12
Output of HDPE kg/h 180
Clamping force kn 158
Screw diametre mm 110
Screw heating power kw 21
Blow pressure mpa 0.6
Size of machine m 4.9*3.1*3.2

Product Details

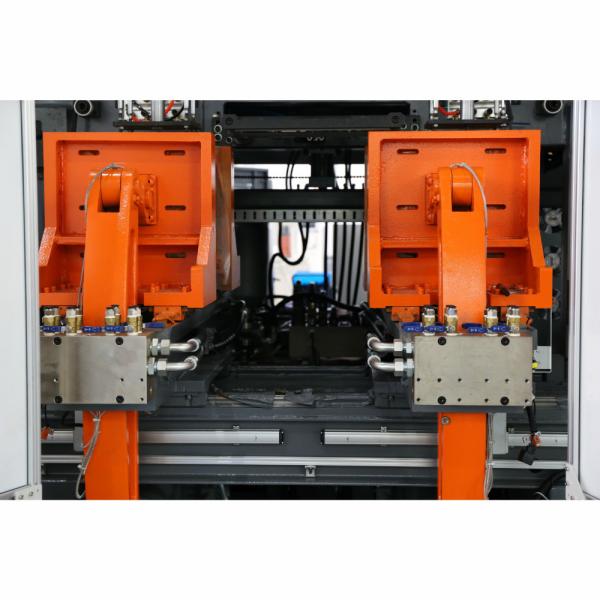

Flex Arm Clamping:Enhanced template structure

Needle blow system:Adjustable angle, suiable for oblique bottles

Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity

In-mold labeling:Increased transfer stroke

Plasticizing:with left-right translation

Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity

Company Information

Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 CavityHollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity

After-sales services

Tongda has a sound service network, perfect after-sales service system, 14 professional after-sales service teams across the country, and a timely response service mechanism to continuously improve user satisfaction. Serve every customer sincerely, respond quickly, and solve the problems raised by customers in a timely manner. We will regularly send debugging engineers to visit customers and solve problems in time.

Hollow PE PP HDPE Daily Chemical Bottle Blow Molding Machine 4 Cavity

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
