Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$69,999.00 - $84,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA HSll5L
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Year :
2019
Voltage :
Customized to customer needs
Dimension(L*W*H) :
4.9m*3.1m*3.2m
Hollow part volume :
1-5L
Clamping Force (kN) :
110
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
25
Screw diameter (mm) :
80 mm
Output (kg/h) :
110 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
5
Screw Heating Power(kW) :
19 kW
Extruder Motor Power(kW) :
30 kW
Mold Platen Size(Width)(mm) :
480 mm
Mold Platen Size(Height)(mm) :
450 mm
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
0.8 m³/min
Die Head Heating Power(kW) :
10.7 kW
Accumulator Capacity(L) :
0 L
Power (kW) :
80
Weight (T) :
9
Key Selling Points :
Long Service Life
Warranty :
1 Year
Applicable Industries :
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Rotary Cylinder Brand :
FESTO
Station :
Double Station
Suitable bottle :
1-5L
Key words :
Automatic Extrusion Blow Moulding Machine
Packing :
Wooden
Use :
Hollow Moulding
Parison Control :
MOOG
Max. Size of Mold :
480*450
Hydraulic valve :
Yuken
Color :
Blue
Port :
shanghai
Description

TONGDA HSll15L Fully Automatic Plastic 10l Blow Molding Machine

Product Description

This is our best series machine.This is hydraulic servo system.The clamping unit is elbow style and the clamping force is more uniform.It is high speed and energy-saving. This machine is suitable for 5 Litre container/ spray bottle / wide mouth jar, etc.It can be also equipped with several die-heads and then to make the small product.

Technical Parameters

MODEL Units HSII-5L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.5*2.7*3.1

Product Details

15 Inches

Color Control Screen

More Convenient Operation

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines

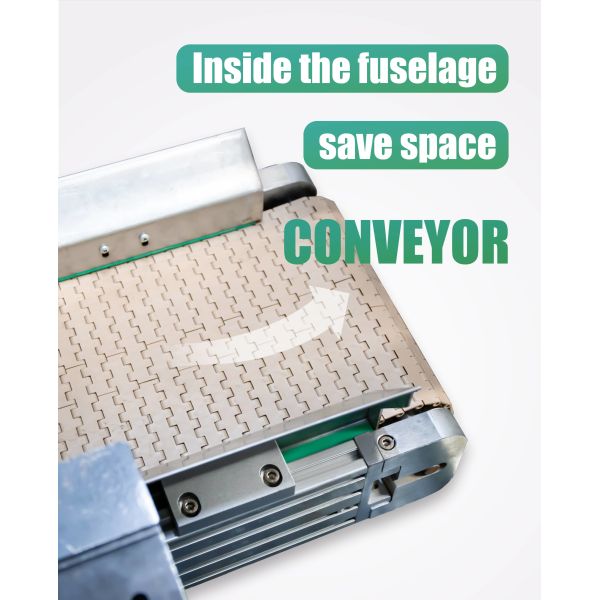

Conveyor

Inside the machine body, save space

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines

Company Information

From negotiation to determining the optimal production plan for customers, from equipment installation and commissioning, maintenance, system Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding MachinesPesticide Chemical Bottle Making Machine Extrusion Blow Moulding MachinesPesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines

After-sales services

Tongda has a sound service network, perfect after-sales service system, 14 professional after-sales service teams across the country, and a timely response service mechanism to continuously improve user satisfaction. Serve every customer sincerely, respond quickly, and solve the problems raised by customers in a timely manner. We will regularly send debugging engineers to visit customers and solve problems in time.

Pesticide Chemical Bottle Making Machine Extrusion Blow Moulding Machines

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
