Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$39,999.00 - $54,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
HTSII5L
Application :
Bottle
Voltage :
Customized to customer needs
Clamping Force (kN) :
110
Screw diameter (mm) :
80 mm
No. of Screw Heating Zone :
4
Die Head Heating Power(kW) :
7.6 kW
Description

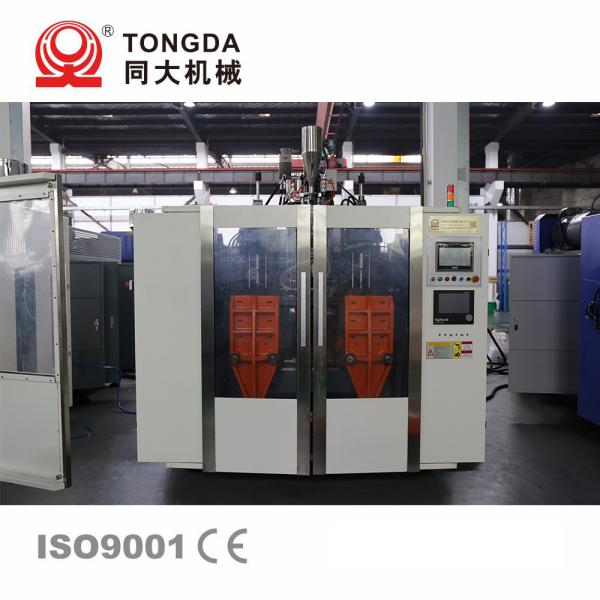

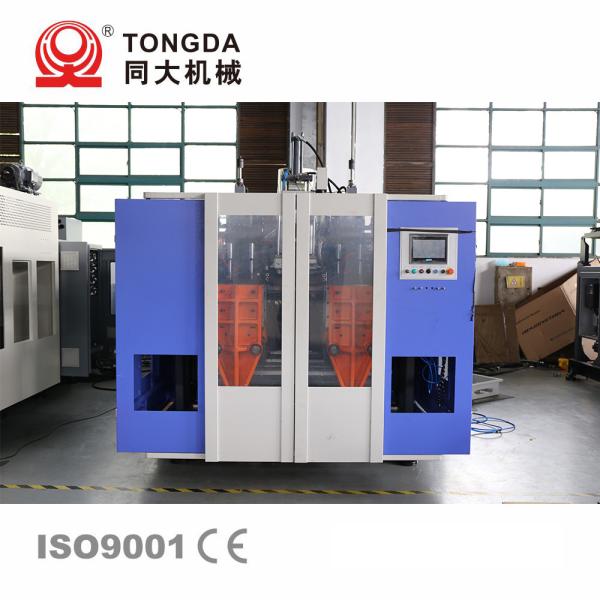

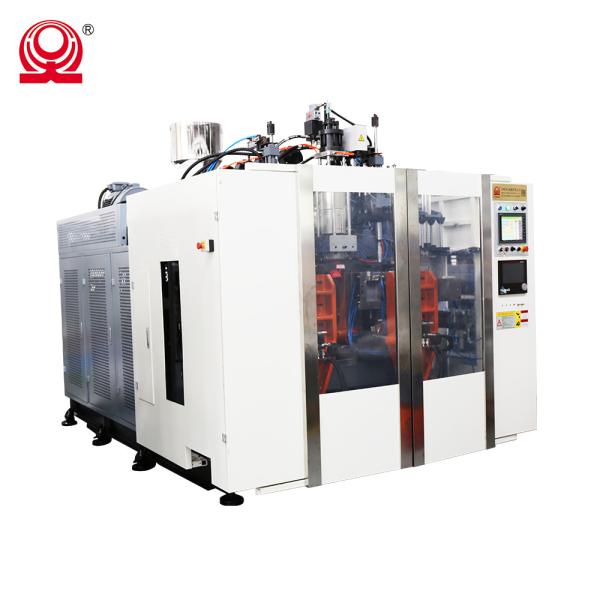

TONGDA HTSII5L Automatic Plastic Extrusion Blow Molding Machine For Hdpe Bottle

Product Description

This is our normal series machine.It is double station.This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.

Technical Parameters

MODEL
Units
HTSll-5L
Click for the latest discount details
Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume
L
5
Output of HDPE
kg/h
110
Clamping force
kn
110
Screw diametre
mm
80
Screw heating power
kw
17.6
Blow pressure
mpa
0.6
Size of machine
m
4.1*2.6*2.7

Product Details

Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine

Parison controller we use MOOG 200 Points or AUTOMATA 300 Points, with extremely sensitive action.

Touch screen we use large size INNOVANCE

Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

Company Information

Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

Small HDPE Bottle Making Machine Double Station Extrusion Plastic Blowing Machine

"Working Together to Grow Together" is the spirit of Suzhou Tongda Machinery, to cooperate with us and we are always at your service to provide you with strong support.

After-sales Service

Arrange engineer to customer's factory
We supply the after-service online 24 hours

FAQ


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
