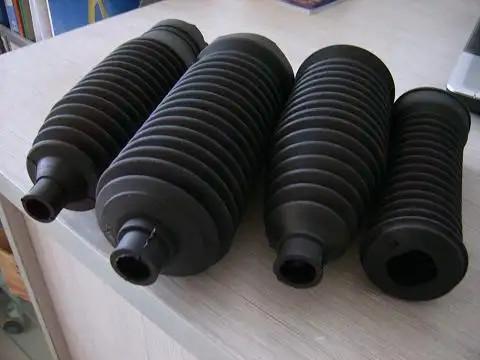

Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Fully Automatic Extrusion Blow Molding Machine 85 Kg/H For TPV Dust Cover
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Certification :
CE, ISO9001
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$29,999.00 - $31,999.00/Sets
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TDB-10F
Hollow part volume :
1-10L
Clamping Force (kN) :
95KN
Screw L/D Ratio :
25
Screw diameter (mm) :
70 mm
Output (kg/h) :
85 kg/h
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
0.6 m³/min
Accumulator Capacity(L) :
2 L
Description

TONGDA TDB-10F Fully Automatic Plastic TPV Dust Cover Production Small Extrusion Blow Molding Machine

Product Description

The TDB-10F extrusion blow moulding machine is suitable for producing hollow plastic products size below 10L, and it is often used to produce products that need to put inserts, so the machine's semi-automatic mode is really suitable, after finished putting the inserts, just press the auto mould close, the production will start again. Very convenient. and it is equipped with bottom blowing unit.The die-head is accumulator type.
The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.
Technical Parameters

MODEL
Units
TDB-10F
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
10
Output of HDPE
kg/h
85
Clamping force
kn
95
Screw diametre
mm
70
Screw heating power
kw
13.2
Blow pressure
mpa
0.6
Size of machine
m
4.1*1.9*3

Product Details

Die head: Is designed by our own R&D department, manufactured and assembled by our assembling center, to ensure the confidentiality of the core technology and the manufacturing precision, and at the same time facilitate the later debugging and maintenance.

Die head:Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.

Die head:Using 38CrMoALA, 42CrMo and other high-quality materials, made by precision machining and heat treatment.

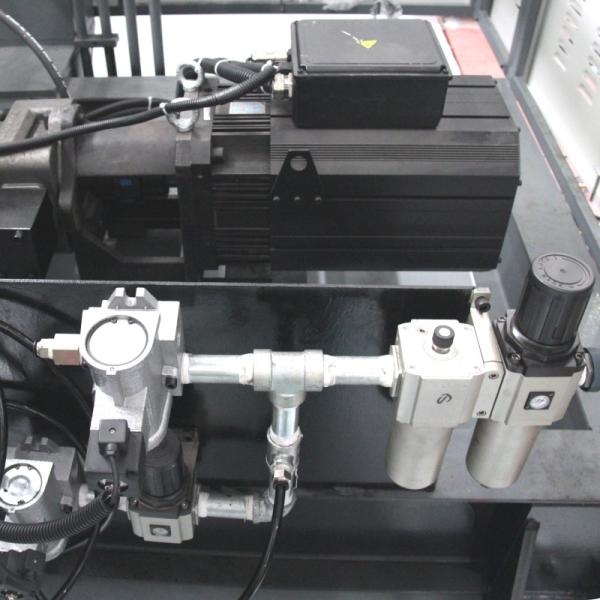

Hydraulic system: proportional pressure control, equipped with famous brand hydraulic components, which are stable and reliable.

Company Information

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

From negotiation to determining the optimal production plan for customers, from equipment installation and commissioning, maintenance, system operation to production process, we provide you with reasonable suggestions and perfect solutions at each stage, as well as fast spare parts supply and convenience. technical service and support.

Suzhou Tongda Machinery has won TOP 1 in China domestic extrusion blow molding machine for continuous 10 years.

After-sales Service

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Why Choose Us

Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.
FAQ
TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function

Q: How big is your company?
A: our company has 270 employees and A building area of 53,330 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1998.

Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
