Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$249,999.00/Sets >=1 Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
90 working days
Payment Terms :
T/T, L/C, D/P, West Union
Dimension(L*W*H) :
8.2*2.9*5.4
Clamping Force (kN) :
770
Screw L/D Ratio :
32
Screw diameter (mm) :
120 mm
Output (kg/h) :
380 kg/h
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
2 m³/min
Accumulator Capacity(L) :
22 L
Description

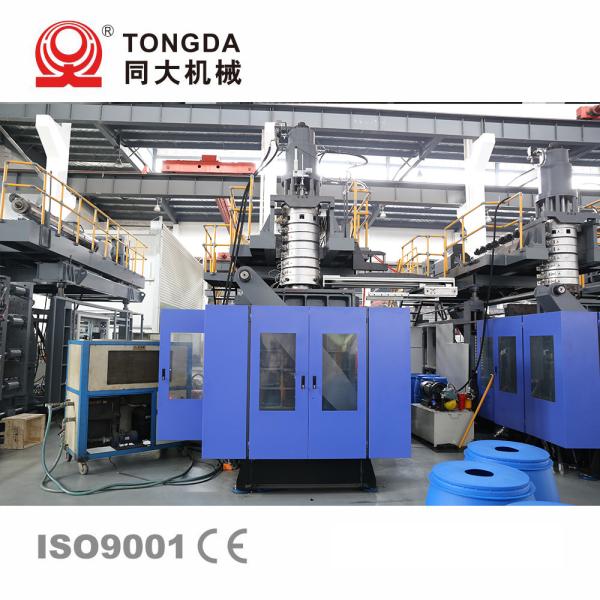

TONGDA TDB250F 55 Gallon HDPE Blue Barrel Plastic Drum Blow Molding Machine
Product Description
TDB-250F
This machine is specialized in making 200~220L single or double ring drum & open-top drum.This is single layer and equipped with servo motor.The main parts of this machine are designed and manufactured by ourself. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.
Technical Parameters
MODEL Units TDB-250F Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 250
Output of HDPE kg/h 380
Clamping force kn 770
Screw diametre mm 120 32:1
Screw heating power kw 53
Blow pressure mpa 0.6
Size of machine m 7.8×2.9×5.4

Product Details
55 Gallon Large Blow Molding Machine Plastic Blue HDPE Drum Making Machine

Mold temperature controller, can monitor the temperature more precisely

Servo pump, with significant energy saving effect

55 Gallon Large Blow Molding Machine Plastic Blue HDPE Drum Making Machine

15 inches color control screen, with more convenient operation

Our Advantages
Arrange engineer to customer's factory
We supply the after-service online 24 hours
Company Information
55 Gallon Large Blow Molding Machine Plastic Blue HDPE Drum Making Machine55 Gallon Large Blow Molding Machine Plastic Blue HDPE Drum Making Machine
Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas. Warmly welcome new and old customers to visit, to guide, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.
55 Gallon Large Blow Molding Machine Plastic Blue HDPE Drum Making Machine
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional mould machinery company we will try our best to satisfy the kinds of demand of customers.
Why Choose Us
1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.
FAQ

Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
