500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$37,999.00 - $49,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
70-80 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA HTSll3L
Clamping Force (kN) :
70
Screw L/D Ratio :
25
Screw diameter (mm) :
80 mm
Output (kg/h) :
110 kg/h
No. of Screw Heating Zone :
5
Screw Heating Power(kW) :
19 kW
Extruder Motor Power(kW) :
30 kW
Weight (T) :
8
Description
TONGDA HTSII3L 500ml Bottle Machine Milk Bottle Blow Molding Machine
Product Description
HTSll-3L
This is double station, 4 or 6 die-heads.This is suitable for making milk bottles and other small bottles.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements,we can provide customized services for you.
Technical Parameters
MODEL Units HTSII-3L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 0.35
Output of HDPE kg/h 110
Clamping force kn 70
Screw diametre mm 80 25:1
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.1×2.76×2.5
Product Details
500ml Milk Bottle Blow Molding Machine Double Station Customized

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

500ml Milk Bottle Blow Molding Machine Double Station Customized

Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles

Our Advantages
After-sales service
500ml Milk Bottle Blow Molding Machine Double Station Customized
We supply the after-service online 24 hours
Company Information
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized

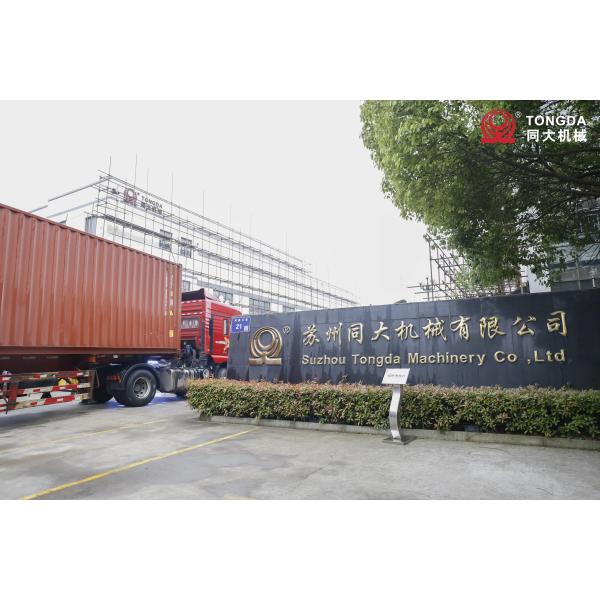

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 270 employees. The company has established Engineering Technology Research and Development Center, and Jiangsu Province excellent Graduate work Jiangsu Enterprise Research and Development Center, Jiangsu Province Extrusion blow Molding Technology Technology Center has more than 50 R & D personnel, including 1 national science and technology talent, Station. Jiangsu Province post-doctoral innovation practice base and other R & D platforms, at present, the that means constantly exploring the expansion of new areas. Warmly welcome new and old customers to visit, to guide, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard. "Working Together to Grow Together" is the spirit of TONGDA company, to cooperate with us and we are always at your service to provide you with strong support.
500ml Milk Bottle Blow Molding Machine Double Station Customized
500ml Milk Bottle Blow Molding Machine Double Station Customized
Why Choose Us
Service Marketing Network
1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.
FAQ
Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
