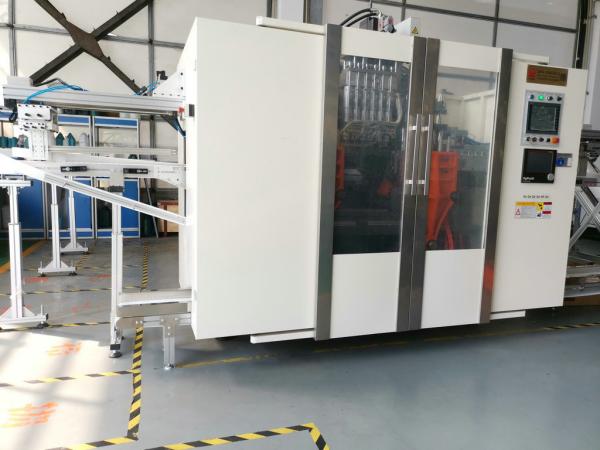

30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$37,999.00 - $49,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
70-80 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA HTSII3L
Screw L/D Ratio :
25
Screw diameter (mm) :
80 mm
Output (kg/h) :
110 kg/h
No. of Screw Heating Zone :
5
Screw Heating Power(kW) :
19 kW
Extruder Motor Power(kW) :
30 kW
Mold Platen Size(Width)(mm) :
490 mm
Mold Platen Size(Height)(mm) :
250 mm
Description
TONGDA HTSII3L Factory Price Automatic 750ml Milk Bottle Making Machine
Product Description
Our HTSII-3L machine is double station, generally equip 4 or 6 die-heads to produce small milk bottles and other small bottles.We do the R&D and manufacturing of the main parts by ourselves. And we have strict inspection to enable parts with good quality.If you have other special requirements,we can provide customized services for you.
Technical Parameters
MODEL Units HTSII-3L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 0.35
Output of HDPE kg/h 110
Clamping force kn 70
Screw diametre mm 80 25:1
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.1×2.76×2.5
Product Details
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing

Multi-head die head confituration available for different output requirement, from 1 cavity to 8 cavity, we all can supply.

30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing

Hydraulic valve group, cost effective, fast reaction, the clamping force is strengthened for the molding locking

Our Advantages
After-sales service
Arrange engineer to customer's factory
30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
We supply the after-service online 24 hours
Company Information
"Working Together to Grow Together" is the spirit of Suzhou Tongda Machinery, to cooperate with us and we are always at your service to provide you with strong support.

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

We have more than 350 employees, among them have more than 50 R & D personnel, including 1 national science and technology talent. Over 7000sets blow molding machines have been sold to more than 120 countries and regions. Now our annual output is 800sets machine.

30 kW Plastic Milk Bottle Blow Molding Machine 750ml Automatic For Manufacturing
Under normal conditions,the blow molding machine to abroad will be packaged in wooden case. ln addition,we will also pack the machine according to the requirements of specific customers.Subject to the measurement of main blower,we will choose corresponding wooden case, TONGDA is a professional mould machinery company we will try our best to satisfy the kinds of demand of customers.
Why Choose Us
Service Marketing Network
1.Over four thousand Tongda machines have been serving customers all over the world.
2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.
3.our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.
Our Machinery has been keeping good cooperative relationship with customers since our establishing.
The satisfaction of our customers are the pursuit of every member of Tongda,The only way we service in the competitive market is to help our customers to full fill their requirement.
FAQ
Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.

Q: how long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
