Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$21,999.00 - $29,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA HTS2L
Core Components :
PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Voltage :
Customized to customer needs
Dimension(L*W*H) :
2.78m*1.55m*2.35m
Hollow part volume :
1-2L
Clamping Force (kN) :
44
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
25
Screw diameter (mm) :
50 mm
Output (kg/h) :
50 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
3
Screw Heating Power(kW) :
6.8 kW
Extruder Motor Power(kW) :
11 kW
Air Pressure(MPa) :
0.6 MPa
Die Head Heating Power(kW) :
7 kW
Power (kW) :
30.5
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Station :
single
Suitable bottle :
1-2L
Key words :
Automatic Extrusion Blow Moulding Machine
Packing :
Wooden
Parison Control :
MOOG
Max. Size of Mold :
360*320
Hydraulic valve :
Yuken
Color :
White
Description

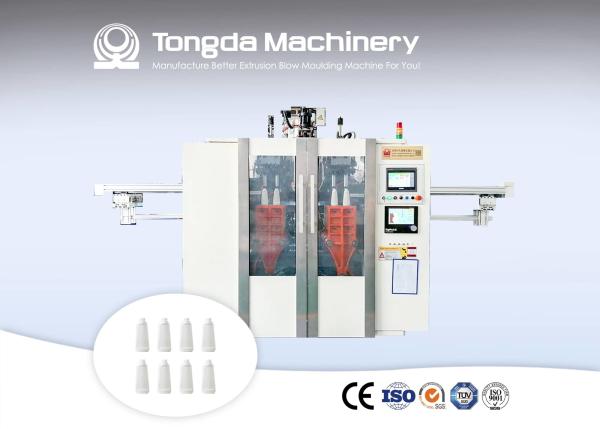

TONGDA HTS2L New Condition High Speed Plastic Bottle Blow Molding Machine

Product Description

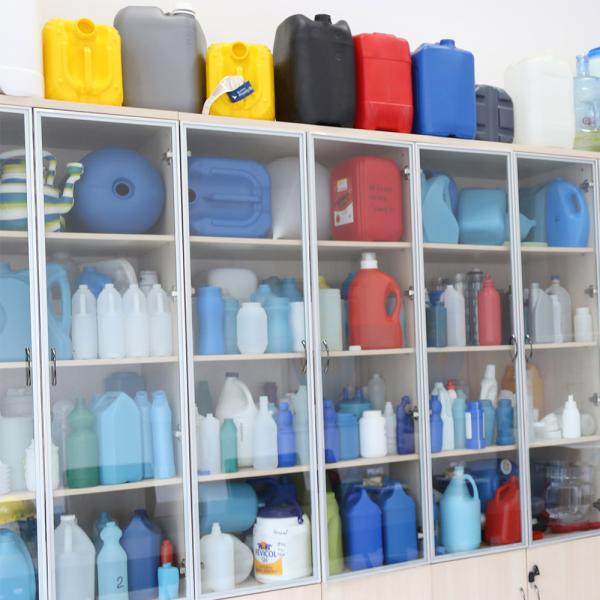

This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.E.g:cream lotion cosmetic bottle/jar/toilet liquid cleaner bottle/laundry detergent cleaner bottle

Technical Parameters

MODEL Units HTS-2L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 50
Clamping force kn 44
Screw diametre mm 50
Screw heating power kw 6.8
Blow pressure mpa 0.6
Size of machine m 2.78*1.55*2.35

Product Details

Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine

Plasticizing system can be designed for multi-layers, 1-4 layers are definitely available, and have high degree customization space.

Honeycomb ventilation holes to ensure better heat dissipation performance.

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine

Company Information

"Working Together to Grow Together" is the spirit of Suzhou Tongda Machinery, to cooperate with us and we are always at your service to provide you with strong support.

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine

After-sales services

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Industrial Hollow Blow Molding Machine High Speed Plastic Bottle Blowing Machine

FAQ

Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.
