Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L
Specifications
Brand Name :
TONGDA
Model Number :
TDB-160
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
USD 119,000~129,000 per set
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Station :
Single
Dry cycle :
120
Screw Diametre :
120mm
Output of HDPE :
300 kg/h
Clamping force :
740KN
Platen distance :
800~1800mm
Size of machine :
6.7*2.9*4.7m
Description

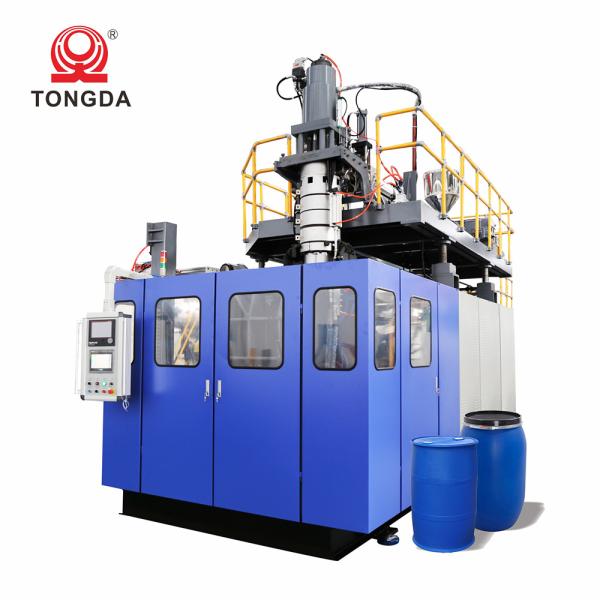

TONGDA TDB-160D HDPE Drums Blow molding Machine Big Extrusion Blow Moulding Machine

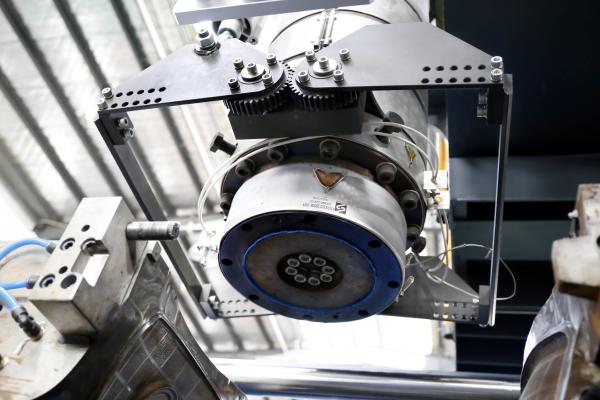

This extrusion blow molding machine is suitable for 120L-160L products and it is bottom blow. The die-head is accumulator. It is equipped with servo motor.
The main parts of this machine are designed and manufactured by ourselves. We do the independent R&D and inspection. If you have other special requirements, we can provide customized services for you.

Technical Parameters

MODEL Units TDB-160D Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 160
Output of HDPE kg/h 300
Clamping force kn 740
Screw diametre mm 120
Screw heating power kw 32
Blow pressure mpa 1.6
Size of machine m 6.7*2.9*4.7

Product Description

Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L

Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L

Product Details

Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L

15 inches color control screen, with more convenient operation

Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L

Mold temperature controller, can monitor the temperature more precisely

Servo pump, with significant energy saving effect

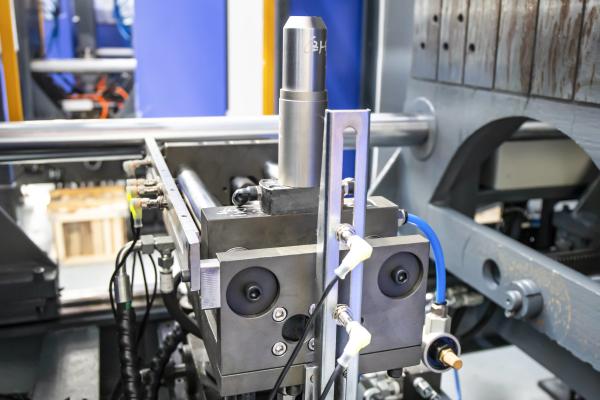

Linear guide rails with high quality, so with high running accuracy and longer service life.

Company Introduction

Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160LBig Extrusion Drum Blow Molding Machine Single Station For 120L - 160LBig Extrusion Drum Blow Molding Machine Single Station For 120L - 160LBig Extrusion Drum Blow Molding Machine Single Station For 120L - 160L

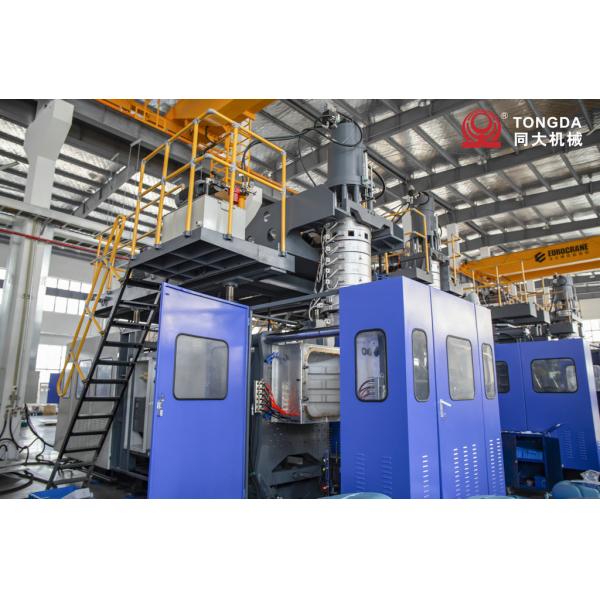

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.
From negotiation to determining the optimal production plan for customers, from equipment installation and commissioning, maintenance, system operation to production process, we provide you with reasonable suggestions and perfect solutions at each stage, as well as fast spare parts supply and convenience. technical service and support.

Service Marketing Network

Big Extrusion Drum Blow Molding Machine Single Station For 120L - 160L

1.Over four thousand Tongda machines have been serving customers all over the world.

2.The company has service outlets in Russia, Egypt, Jordan, Thailand, Chile, Indonesia and Algeria.

3. Our company has exported over 4000 units machine to more than 89 countries and regions, such as USA, UK, Australia, Greece,Poland.Russia,Belarus,South America, South Africa,Indonesia, Egypt, Syria, Ethiopia.We are not only providing our customers with high quality products, but also provide high quality service Which will be rapidly and timely sent to every customer.

FAQ


Advantages of TONGDA tech teams
1. 600 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function
