5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$79,999.00 - $94,999.00/Sets
Certification :
CE, ISO9001
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
HTll30L
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Year :
2020
Voltage :
Customized to customer needs
Dimension(L*W*H) :
6.3m*3.4m*3.9m
Hollow part volume :
1-30L
Clamping Force (kN) :
250
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
28
Screw diameter (mm) :
100 mm
Output (kg/h) :
230 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
5
Screw Heating Power(kW) :
26 kW
Extruder Motor Power(kW) :
75 kW
Mold Platen Size(Width)(mm) :
680 mm
Mold Platen Size(Height)(mm) :
830 mm
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
1.2 m³/min
Die Head Heating Power(kW) :
15 kW
Accumulator Capacity(L) :
0 L
Power (kW) :
141
Weight (T) :
18
Key Selling Points :
Long Service Life
Warranty :
1 Year
Applicable Industries :
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Rotary Cylinder Brand :
FESTO
Station :
Double Station
Suitable bottle :
1-30L
Key words :
Automatic Extrusion Blow Moulding Machine
Packing :
Wooden
Use :
Hollow Moulding
Parison Control :
MOOG
Max. Size of Mold :
680*830
Hydraulic valve :
Yuken
Color :
Blue
Port :
shanghai
Description

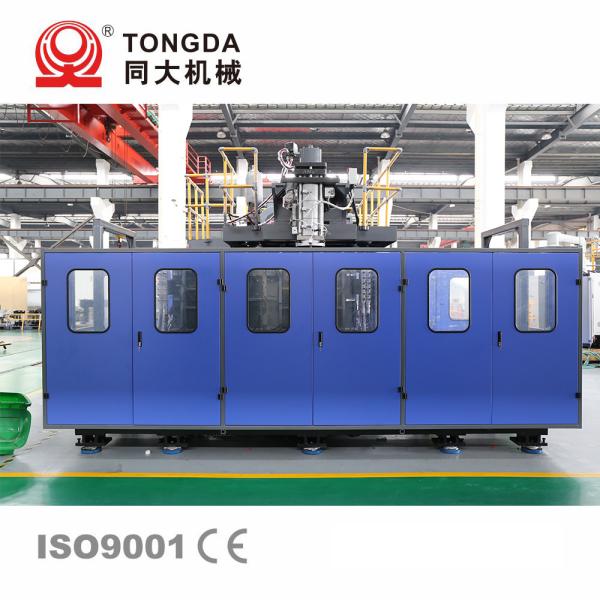

TONGDA HTll30L Double station 5 gallon water bottle blow molding machine
Product Description
This is double station.This is suitable for making the 20L~30Lstacking product.The main parts of this machine are designed and manufactured by ourself.We do the independent R&D and inspection.If you have other special requirements, we can provide customized services for you.
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
Technical Parameters
MODEL Units HTII-30L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 30
Output of HDPE kg/h 230
Clamping force kn 250
Screw diametre mm 100 28:1
Screw heating power kw 26
Blow pressure mpa 0.6
Size of machine m 6.3×3.4×3.9

Product Details

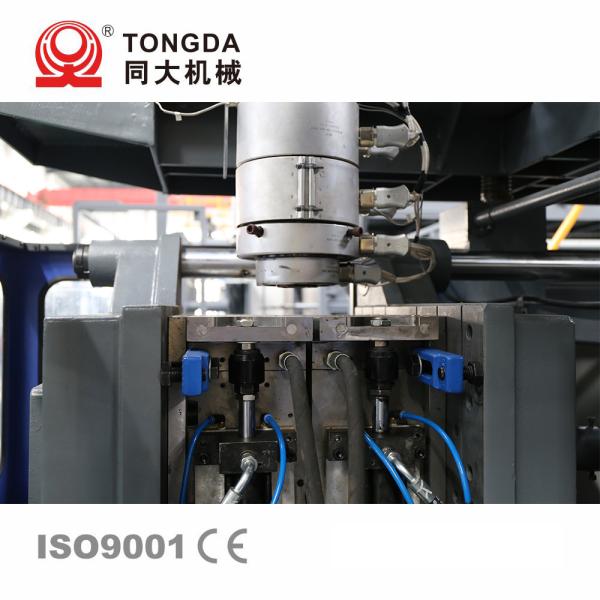

Suitable for equip multi screws to produce multi layer products

5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station

Standard air valve, with stable function

5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station

After-sales service
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
Arrange engineer to customer's factory
5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station
We supply the after-service online 24 hours
Company Information

In the recent 20 years, Suzhou Tongda Machinery Co., Ltd. has been focusing on the research, development and product application of extrusion blow molding machines. The factory covers an area of more than 80 acres of land and has more than 350 employees.

Warmly welcome new and old customers to visit, to guide.

5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station5 Gallon HDPE PP Water Bottle Blow Molding Machine Double Station

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.

Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
