PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Certification :
CE, ISO9001
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$89,999.00 - $99,999.00/Sets
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA TDB25APC
Condition :
New
Core Components :
PLC, Engine, Bearing, Gearbox, Pressure vessel, Gear, Pump
Application :
Bottle
Plastic Processed :
PP, HDPE, PC, PVC, PE, ABS/PP, PE/PP, HDPE/PP, Tritan
Voltage :
Customized to customer needs
Dimension(L*W*H) :
6.3*2.2*3.8
Hollow part volume :
1-25L
Clamping Force (kN) :
215 kN
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
38
Screw diameter (mm) :
82 mm
Output (kg/h) :
160 kg/h
Automation :
Automatic
Screw Heating Power(kW) :
40 kW
Extruder Motor Power(kW) :
30 kW
Mold Platen Size(Width)(mm) :
550 mm
Mold Platen Size(Height)(mm) :
650 mm
Die Head Heating Power(kW) :
40 kW
Accumulator Capacity(L) :
1.9 L
Power (kW) :
106
Weight (T) :
12
Key Selling Points :
Long Service Life
Applicable Industries :
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Rotary Cylinder Brand :
FESTO
Station :
Single
Key words :
Automatic Extrusion Blow Moulding Machine
Packing :
Wooden
Use :
Hollow Moulding
Max. Size of Mold :
550*650
Hydraulic valve :
Yuken
Water consumption :
150
High Pressure Valve Brand :
YUKEN
After-sales Service Provided :
Field maintenance and repair service, Field installation, commissioning and training, Free spare parts, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Egypt, Indonesia, Pakistan, Thailand, Argentina, Chile
Port :
SHANGHAI
Description

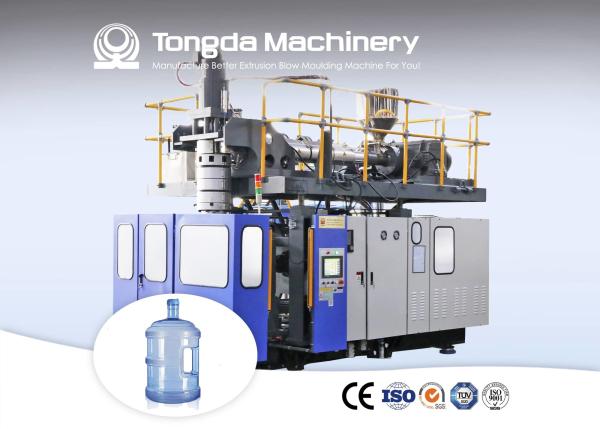

TONGDA TDB25APC Fully automatic pc 5 gallon water bottle blow molding machine

Product Description

This TDB-25APC extrusion blow molding machine is suitable for 25L product and it is bottom blow. The die-head is accumulator. It equipped with servo motor.

Technical Parameters

MODEL
Units
TDB-25APC
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
25
Output of HDPE
kg/h
16
Clamping force
kn
215
Screw diametre
mm
82
Screw heating power
kw
40
Blow pressure
mpa
0.6
Size of machine
m
6.3-*2.2*3.8


PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW


Product Details

PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW

Clamping structure, we use 3 plate type design, with more stable clamping function

Separate oil source, for parison controller, to ensure better and more stable reaction speed.

PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW

Mold temperature controller, can monitor the temperature more precisely

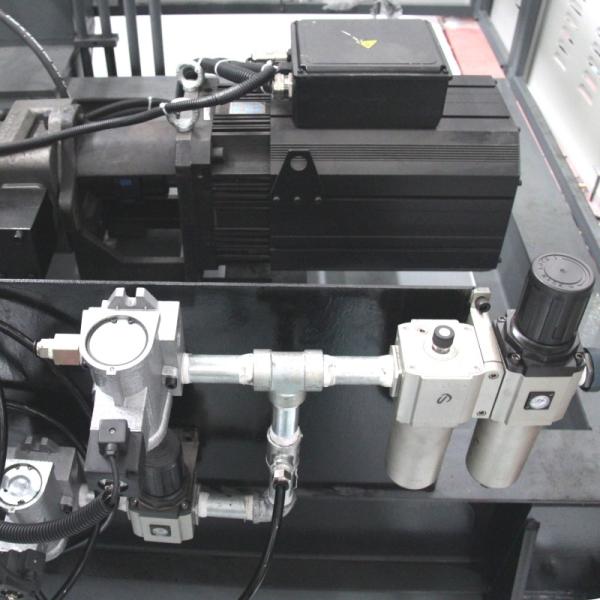

Servo pump, with significant energy saving effect

Company Information

Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

PC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kWPC 5 Gallon Water Bottle Blow Molding Machine Single Station 106kW

FAQ

Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.


Q: How big is your company?
A: our company has 400 employees and A building area of 100,000 square meters. We own land and factories.The company has a registered capital of us $2 million and a long-term business license since 1999.


Q: How long is the warranty on your equipment?
A: we offer A one-year free warranty and A lifetime after-sales service.
