5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator
Specifications
Place of Origin :
JIANGSU, CHINA
Brand Name :
TONGDA
Certification :
CE, ISO9001
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Supply Ability :
800sets/year
Price :
$89,999.00 - $119,999.00/Sets
MOQ :
1SET
Delivery Time :
28 working days
Payment Terms :
T/T, L/C, D/P, West Union
Model Number :
TONGDA TDB25APC
Machinery Test Report :
Provided
Core Components :
PLC, Bearing, Motor, Pressure vessel, Pump
Application :
Bottle
Plastic Processed :
PP, HDPE, PC, PVC, PE, Tritan
Year :
2019
Voltage :
220~440
Dimension(L*W*H) :
6.3*2.2*3.8m
Hollow part volume :
5gallon
Clamping Force (kN) :
215
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
38
Screw diameter (mm) :
82 mm
Output (kg/h) :
160 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
4
Screw Heating Power(kW) :
40 kW
Extruder Motor Power(kW) :
50 kW
Mold Platen Size(Width)(mm) :
550 mm
Mold Platen Size(Height)(mm) :
650 mm
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
1 m³/min
Die Head Heating Power(kW) :
9.5 kW
Accumulator Capacity(L) :
1.9 L
Power (kW) :
106
Weight (T) :
12
Key Selling Points :
use TRITAN and automatic
Warranty :
1 Year
Applicable Industries :
Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
High Pressure Valve Brand :
AirTac
Rotary Cylinder Brand :
AirTac
After-sales Service Provided :
Field maintenance and repair service, Field installation, commissioning and training, Video technical support, Online support
After Warranty Service :
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Port :
Shanghai port
Description

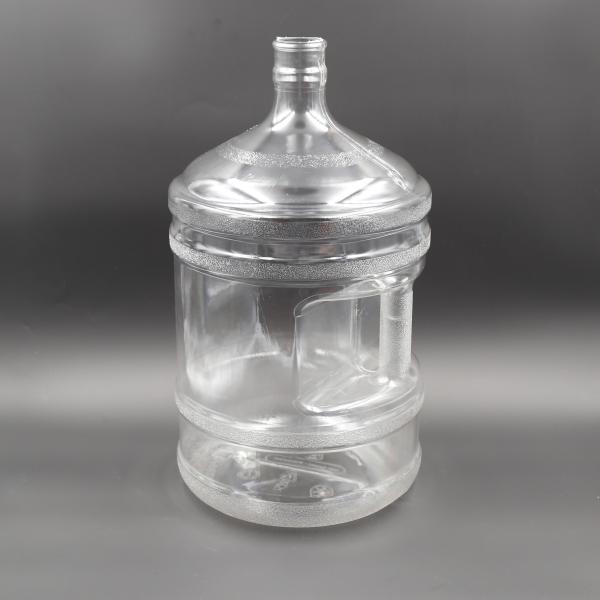

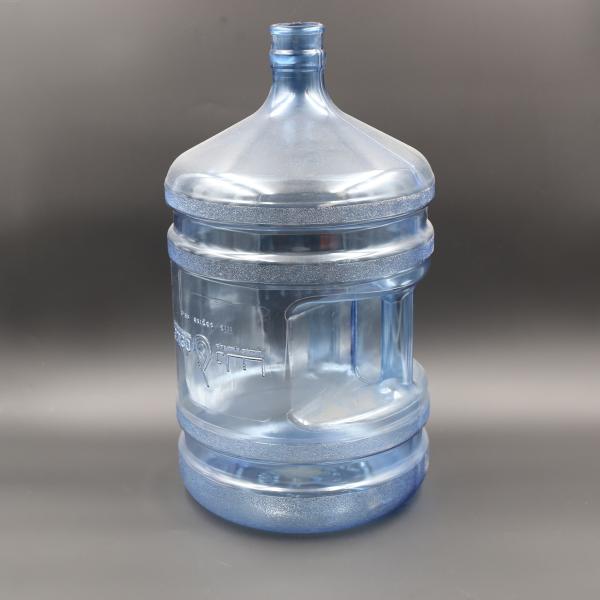

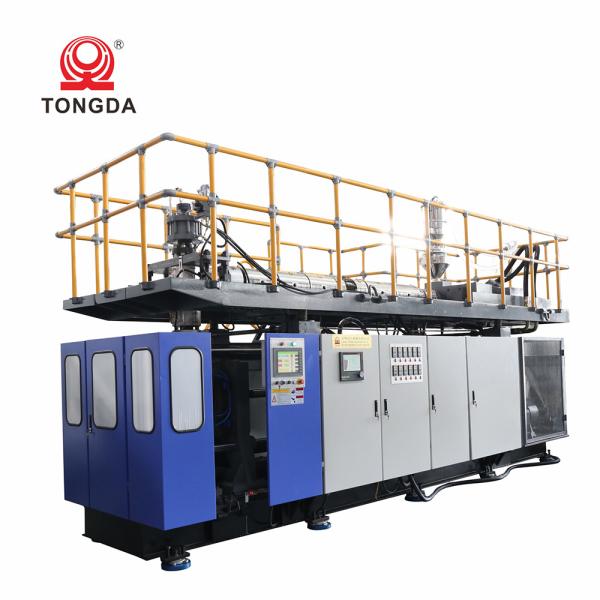

TONGDA TDB25APC 5 Gallon TRITAN and PC bottle automatic extrusion blow molding machine

Product Description

This TDB-25APC extrusion blow molding machine is suitable for 25L product and it is bottom blow. The die-head is accumulator. It equipped with servo motor.

Technical Parameters

MODEL
Units
TDB-25APC
Remarks: If you have other special requirements,we can provide customized services for you.
Max. Product volume
L
25
Output of HDPE
kg/h
16
Clamping force
kn
215
Screw diametre
mm
82
Screw heating power
kw
40
Blow pressure
mpa
0.6
Size of machine
m
6.3-*2.2*3.8


5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator


Product Details

5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator

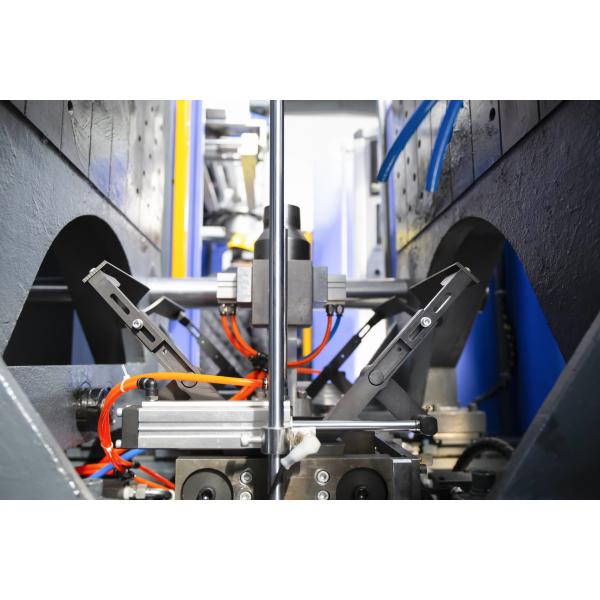

Bottom Blowing Unit, with high precission of component assembly, can also be equipped with down seal device

Upper parison sealing device, stable and reliable



5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator

Die head:Excellent flow channel technology and precise machining accuracy, make the color change and material change more efficient. From dark to white, normally can be completed within 3hours. Much quicker than other suppliers. Save cost for you if you need to produce different color products.

Company Information

Now we have more than 50 R & D personnel, including 1 national science and technology talent, 4 senior masters,15 bachelors, hosting the development of two national standards and participating in the formulation of a national standard.

5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator5 Gallon TRITAN PC Bottle Blow Molding Machines Extrusion 1.9L Accumulator

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
