Single Station Mini Hollow Blow Molding Machine HDPE PP EVA Fully Automatic
Single Station Mini Hollow Blow Molding Machine HDPE PP EVA Fully Automatic
Specifications
Brand Name :
TONGDA
Model Number :
TONGDA HTS2L
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$21,999.00 - $29,999.00/Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Dimension(L*W*H) :
3.2m*2.12m*2.55m
Clamping Force (kN) :
44
Screw L/D Ratio :
25
Screw diameter (mm) :
60 mm
Mold Platen Size(Width)(mm) :
360 mm
Mold Platen Size(Height)(mm) :
320 mm
Power (kW) :
39
Weight (T) :
6
Max. Size of Mold :
360*320
Description

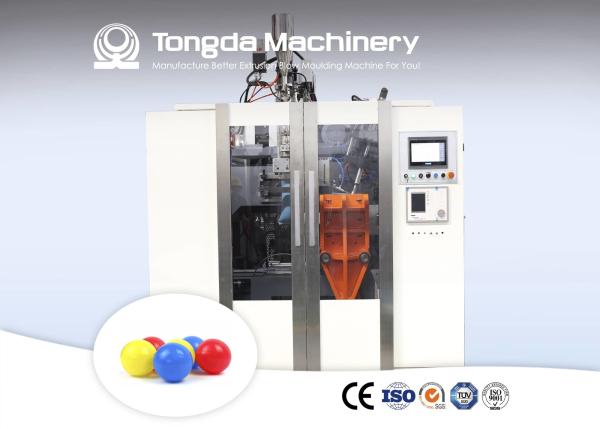

TONGDA HTS2L Single Station Fully Automatic Mini Extrusion Blow Molding Machine

Product Description

This machine is suitable for the small bottles.The main parts of this machine are designed and manufactured by ourself.E.g:continuous die head / HDPE plastic additive bottle car brake oil can

Technical Parameters

MODEL Units HTS-2L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 50
Clamping force kn 44
Screw diametre mm 50
Screw heating power kw 6.8
Blow pressure mpa 0.6
Size of machine m 2.78*1.55*2.35

Product Details

Stable and efficient clamping system

Adjustable rotary type blow pin unit, suitable for oblique bottles

Single Station Mini Hollow Blow Molding Machine HDPE PP EVA Fully Automatic

Parison controller we use MOOG 200 Points or AUTOMATA 300 Points, with extremely sensitive action.

Touch screen we use large size INNOVANCE

Single Station Mini Hollow Blow Molding Machine HDPE PP EVA Fully Automatic

Company Information

Suzhou Tongda Machinery Co., Ltd. is located in Zhangjiagang City, Fenghuang town Korea Industrial Park. 2 hours away from Shanghai City by car. We have more than 23 years experience always specialized in R&D and manufacturing of extrusion blow molding machine.

Single Station Mini Hollow Blow Molding Machine HDPE PP EVA Fully AutomaticSingle Station Mini Hollow Blow Molding Machine HDPE PP EVA Fully Automatic

After-sales services

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

Single Station Mini Hollow Blow Molding Machine HDPE PP EVA Fully Automatic

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
