EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can
Specifications
Brand Name :
TONGDA
Model Number :
TONGDA HTSII5L
Certification :
CE, ISO9001
Place of Origin :
JIANGSU, CHINA
MOQ :
1SET
Price :
$39,999.00 - $54,999.00/Sets
Payment Terms :
T/T, L/C, D/P, West Union
Supply Ability :
800sets/year
Delivery Time :
28 working days
Packaging Details :
PE film, PE bag, Wooden Cases, Wooden Pallet, etc.
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Application :
Bottle
Plastic Processed :
PP, HDPE, PC, ABS, PVC, PE, EVA, PA, ABS/PP, PE/PP, HDPE/PP, PETG
Year :
2020
Voltage :
Customized to customer needs
Dimension(L*W*H) :
3.2m*2.12m*2.55m
Hollow part volume :
1-5L
Clamping Force (kN) :
110
PLC Brand :
MITSUBISHI
Screw L/D Ratio :
25
Screw diameter (mm) :
80 mm
Output (kg/h) :
110 kg/h
Automation :
Automatic
No. of Screw Heating Zone :
4
Screw Heating Power(kW) :
19 kW
Extruder Motor Power(kW) :
30 kW
Mold Platen Size(Width)(mm) :
440 mm
Mold Platen Size(Height)(mm) :
420 mm
Air Pressure(MPa) :
0.6 MPa
Air Comsumption(m³/min) :
0.4 m³/min
Die Head Heating Power(kW) :
10.7 kW
Accumulator Capacity(L) :
0 L
Power (kW) :
57.8
Weight (T) :
8
Key Selling Points :
Long Service Life
Warranty :
1 Year
Applicable Industries :
Energy & Mining, Hotels, Home Use, Machinery Repair Shops, Restaurant, Food & Beverage Factory, Farms
Showroom Location :
Egypt, Indonesia, Pakistan, Thailand, Chile, Algeria
Rotary Cylinder Brand :
FESTO
Station :
Double Station
Suitable bottle :
1-5L
Key words :
Automatic Extrusion Blow Moulding Machine
Packing :
Wooden
Use :
Hollow Moulding
Parison Control :
MOOG
Max. Size of Mold :
440*420
Hydraulic valve :
Yuken
Color :
White
Port :
shanghai
Description

EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can

Product Description of HTSII-5L

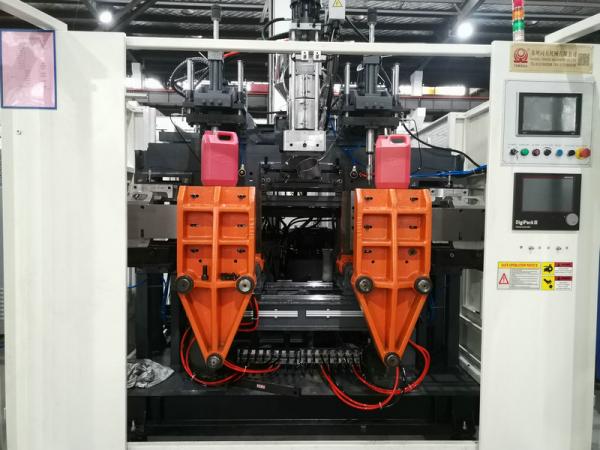

This is our normal series machine.It is double station. This machine is suitable for the jerry can.It can be equipped with several die-heads and then it is also suitable for small bottles. E.g:Jerry can / canister / continuous die head / HDPE plastic additive bottle car brake oil can

Technical Parameters of HTSII-5L

MODEL Units HTSII-5L Remarks: we will customize the most suitable machinery according to your requirements
Max. Product volume L 5
Output of HDPE kg/h 110
Clamping force kn 110
Screw diametre mm 80
Screw heating power kw 19
Blow pressure mpa 0.6
Size of machine m 4.1*2.6*2.7

Product Details of HTSII-5L

Stable and efficient clamping system

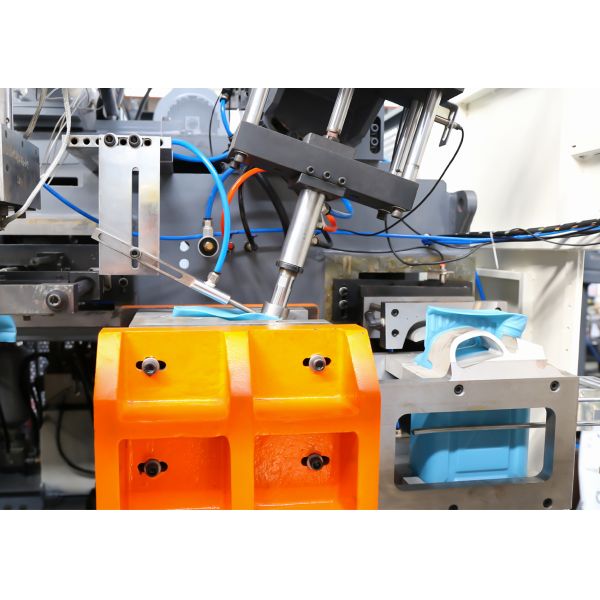

Adjustable rotary type blow pin unit, suitable for oblique bottles

EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can

Air valve enlarged to ensure better shaping.

Multi-layer, durable tubes are used

EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can

Company Information

Suzhou Tongda Machinery have more than 20,000m2 factory buildings and other facilicities and a new intelligent manufacturing factory with 55,000m2 area. The I phase 20,000m2 area factory will be put into use in June, 2022. And on May 19th, 2022, we just held the II phase intelligent manufacturing base groundbreaking ceremony.

EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry CanEBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can

After-sales services

During epidemic period, our team have helped customers start up more than 250sets new Tongda machines by online service, to help customer run the machine as soon, our after sales team helped around 3 hours till the mid-night.

EBM Extrusion Blow Molding Machine For 5L HDPE Drum Jerry Can

FAQ

TONGDA sales consultant
1. We can provide comprehensive and professional Suggestions on equipment selection.
2. Energy consumption calculation and investment income analysis can be provided.
3. Provide tailor-made CAD drawings of workshop layout and product optimization Suggestions.
4. Extrusion plastic bottle blow molding machine has remote maintenance function


Advantages of TONGDA tech teams
1. 800 sets of customized requirements per year enable us to have rich experience across multiple industries.
2. Customize equipment models according to customer product characteristics.
3. Project responsibility system, closed-loop team cooperation between the design team and the process team, adjustment of the team, and joint creation of equipment that users are satisfied with.
4. Engineers can study abroad or participate in technical function training of the industry to master the latest information and technical trends of the industry.
5. Undertake a number of large projects, and has a group of senior technical personnel composed of the construction team, can build cable bridge, installation of a complete set of equipment.


Advantages of TONGDA after-sales team
1. Lifetime free service for the machine.
2. Quick response all day long.
3. Set up domestic service team and international service team.
4. Technicians also master the debugging and maintenance of auxiliary equipment.
5. A free 2-day training course will be provided to customers every year.
6. Special processing equipment to produce after-sales accessories to ensure rapid response to user needs.
