Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Specifications
Model NO. :
Water Filling Machines
Application :
Milk, Yogurt, Cheese, Water
Customized :
Customized
Power :
318V,50Hz , Customized Optional
Capacity :
1000lph,2000lph,3000lph,4000lph,Custmized Optional
Certificate :
ISO
Overseas Installation :
Available
Transport Package :
Wood Carton
Specification :
customized
Trademark :
CN
Origin :
Jiangsu, China
HS Code :
8422301090
Supply Ability :
Customized
After-sales Service :
Available
Warranty :
Available
Process :
Water
Power Source :
Electric
Certification :
CE
Automatic Grade :
Automatic
Samples :
US$ 500000/Piece 1 Piece(Min.Order) | Request Sam
Customization :
Available | Customized Request
MOQ :
1pc
Delivery Time :
5-8 days
Payment Terms :
L/C, T/T
Description

Water production line carbonated soda drinks making equipment


Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate

Main Features
  • Suite for different kinds of liquid food,such as ice cream
  • Easy to operate and clean
  • High Control temperature accuracy
  • Good energy saving
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate

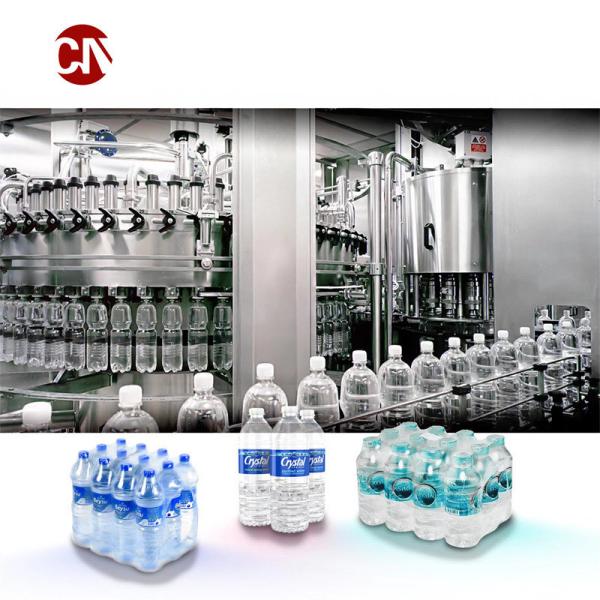

The machine is a automatic multiple-funcition washing, filling and capping unit. It is used in washing, filling and sealing all kinds of no gas contained liquid, such as fruit juice, oil & vinegar, wine, fruit wine, mineral water and pure water. The line has features of unique design, new style, complete functions, multi-purpose, convenient in operation, beautiful construction, high automaticity. It is the best filling equipment in CHINA.

Water filling machine is used to fill pure water, mineral water and other non-carbonated beverage.

All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.

This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling:

gravity filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.

This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot

Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate



Specifications

Heads of washing filling and capping

16-12-6

18-18-6

24-24-8

32-32-10

40-40-12

Production capacity (bottle/hour)

2000-4000

5000-7000

8000-12000

12000-15000

16000-20000

Suitable bottle specification

φ=50-110=170 330-2250ml

Washing pressure(kg/cm2 )

2-3

Motor power(kw)

2.2kw

2.2kw

3kw

5.5kw

7.5kw

Overall dimensions(L*W*H)

2400*1650*2500

2600*1920*2550

3100*2300*2800

3800*2800*2900

4600*2800*2900

Weight (kg)

2500

3500

4500

6500

8500


Details :
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate



Related Products:
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Processing Line Equipment


20Ton/Hour Milk, Yogurt Production Line Equipment

Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
500L Milk or Yogurt production Line Equipment
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate


Application:
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Company Introduction:
Chun Nuo Intelligent Manufacturing (Shanghai) Technology Co., Ltd.

Established in 2014 in Jiading District, Shanghai. We have our own production base,which located in Yangzhou City, Jiangsu Province. Our company is mainly engaged in the food, beverage, beer, condiments, pharmaceutical and chemical industries, and is responsible for the design, production and manufacturing of complete line equipment for fluid food turnkey projects. The main equipment includes pasteurizer, UHT sterilizer, Mixing Tank System, CIP systems, stainless steel tanks, Aseptic tanks, aging tanks, cheese Jar and Cooling tank, various types of individual equipment.
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
We have a large number of professional and technical personnel and technical service teams with many years of installation experience at home and abroad. We have undertaken the overall installation of many large-scale projects. The company provides world-class professional engineering installation experience and management experience in a work spirit of excellence. , provide users with good after-sales service and wholeheartedly meet user requirements. Professionals are the foundation of good service. Our after-sales service personnel have practical experience and system training in equipment use and maintenance, and truly master professional knowledge and on-site processing skills. method.

Exhibition:
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate

Certification:
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
Shipment:
Automatic Commercial Low Carbonated Soft Drink Filling Machine with ISO Certificate
FAQ:

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine
Q2: Do you have after-service stations?
A2: our engineer can go to overseas for aftersales service
Q3: Do you provide customized service
A3: We can design the machines according your requirements(material ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.
Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
