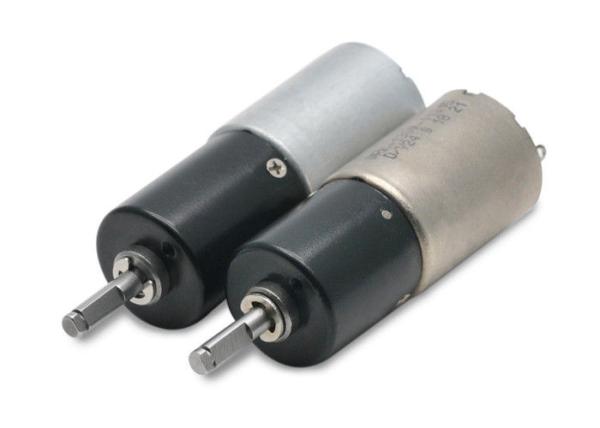

Reduction Radio 1 / 24 Metal Robot Gear Motor For Electric Curtain
Reduction Radio 1 / 24 Metal Robot Gear Motor For Electric Curtain
Specifications
Place of Origin :
China
Brand Name :
DAITTO
Certification :
ISO,CE
Model Number :
DA016017-24
MOQ :
500
Description
Voltage: 9V Or Customised Application: Mobile Telecommunication Base Station, Electric Curtain, Medical Device, Rotating Advertisement, Automatic Teller Machine, And Etc.
Material: Metal Diameter: 16mm
Reduction Ratio: 24:1 Rated Load Torque: 77 Gf.cm
Rated Load Speed: 271 Rpm No Load Speed: 306 Rpm
No Load Current: 105 MA MAX Tolerance: 0.3mm

Reduction Radio 1 / 24 Metal Robot Gear Motor For Electric Curtain

Specifications

Model Typical Application Parameters Max Rated Torque of Gear Box Max Instant Torque of Gear Box Gear Ratio Gear Box Length
Rated At No Load At Rated Load Overall Length
Voltage Speed Current Speed Current Torque
VDC rpm mA(MAX) rpm mA(MAX) gf.cm mN.m mm gf.cm gf.cm mm
DA016017-16 9.0 460 105 406 165 51 5.0 37.5 2500 10000 16 14.8
DA016017-24 9.0 306 105 271 165 77 7.5 2500 10000 24
DA016017-36 9.0 204 105 181 165 115 11.3 2000 10000 36
DA016017-64 9.0 115 115 102 165 135 13.2 40.8 3500 10000 64 18.1

above specifications just for reference and customizable according to requirements

Description

Parameters

diameter

16mm Gearbox, 17mm Motor

motor

DC brush motor

noise level

less than 40dB at the 50cm distance

life time

500 hours

working temperature

-40 to 95℃

tolerance

<0.3mm

Certification

ROHS/ISO9001/ISO14001/SGS/TS16949

Suitable for

Robot, Hair curler, Respirator, Automatic door & window, Monitoring equipment, and etc.

OSD Language

English, French, German, Italian, Russian, Spanish, Portuguese, Dutch, Greek, Japan, Korean

The basic specifications for reference only, specifications can be customized.
