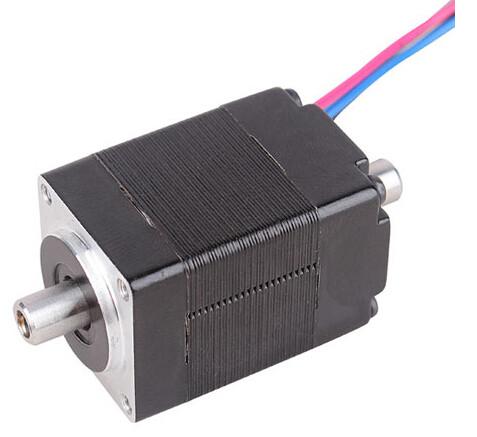

nema8 20HS 2 phase 1.8° hybrid stepper motor
nema8 20HS 2 phase 1.8° hybrid stepper motor
Specifications
Place of Origin :
China
Brand Name :
Nema
Step Angle Accuracy :
±5%
Resistance Accuracy :
±10%
Inductance Accuracy :
±20%
Temperature Rise :
80℃ Max
MOQ :
1pc
Price :
based on the specification and quantity
Packaging Details :
cartons
Delivery Time :
according to model No and quantity
Payment Terms :
pay by T/T
Supply Ability :
1000sets/month
Description
Quick Detail:
Item Specifications
Step Angle Accuracy ±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃ Max
Ambient Temperature -20℃～+50℃
Insulation Resistance 100MΩMin.500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)

Model No Step
Angle
(°)		 Rated
Voltage
(V)		 Rated
Current
(A)		 Phase
Resistance
(Ω)		 Phase
Inductance
(mH)		 Holding
Torque
(g.cm)		 Rotor
Inertia
(g.cm²)		 Motor
Length
(mm)		 Lead
No.		 Motor
Weight
(g)
20HS28-0204 1.8 4.6 0.2 23 8.2 140 2.5 28 4 50
20HS30-0506 1.8 5.75 0.5 11.5 1.7 180 2.8 30 6 60
20HS33-0604 1.8 3.9 0.6 4.5 1.6 180 3.2 33 4 70
20HS38-0604 1.8 6 0.6 10 5.5 260 3.6 38 4 80
20HS42-0804 1.8 1.2 0.8 1.5 5.4 300 4 42 4 90
Above only for representative products,products of special request can be made according to the customer request.
