24V 36V 48V 120A 90A Bldc Motor Controller For Electric Vehicle Bldc Speed Controller
24V 36V 48V 120A 90A Bldc Motor Controller For Electric Vehicle Bldc Speed Controller
24V 36V 48V 120A 90A Bldc Motor Controller For Electric Vehicle Bldc Speed Controller
24V 36V 48V 120A 90A Bldc Motor Controller For Electric Vehicle Bldc Speed Controller
24V 36V 48V 120A 90A Bldc Motor Controller For Electric Vehicle Bldc Speed Controller
24V 36V 48V 120A 90A Bldc Motor Controller For Electric Vehicle Bldc Speed Controller
24V 36V 48V 120A 90A Bldc Motor Controller For Electric Vehicle Bldc Speed Controller
24V 36V 48V 120A 90A Bldc Motor Controller For Electric Vehicle Bldc Speed Controller
Specifications
Brand Name :
DALA
Model Number :
B2P
Place of Origin :
Chengdu,China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
standard packing, as customer demands
Delivery Time :
7 - 15 working Days
Payment Terms :
L/C,T/T,etc.
Motor type :
DC BrusLess Motor Controller
Function :
Traction
Appolication :
material handling vehicles ...
Nominal Voltage Range (VDC) :
24V
Maximum Current :
120A
Size :
150*95*45.2mm
Description

Bldc Motor Controller B2P 24V 120A Speed Control used in material handling vehicles ...

Product Description:

B2P is a DC Brushless Motor Controller that incorporates patented technologies, including Hybrid Motor Control Technology and Hall-based position hold technology. It features in-house developed motor automatic identification technology, enabling efficient and precise control of the motor. This enhances vehicle reliability and comfort, making it a product that users can trust and use with confidence.
It supports CAN communication and parameterized programming, making it convenient for application and maintenance. It is a high-quality product that can be used with confidence.

Features:

Perfect Function

  1. Supports 8 switching inputs and 3 low-side drive outputs, and various fuel inputs.
  2. The built-in regen braking control function recovers energy of the battery when the motor stops and increases time of use.
  3. The built-in motor control algorithm realize sprecise speed control, smooth starts and stop s over ramps.

Safe and Rliable

  1. Superior sealing and thermal design to protect against water and significantly improve heat dissipation.
  2. Provides protection for motor and controller from over-voltage, under-voltage, over-current, over-heat, anti reverse-connection, etc, with a full range of fault detection functions.
  3. Short-circuit protection and open-circuit detection in the three low-power drive outputs, ensure vehicles safely operated.
  4. Designed to meet EN13849-1(Cat2,PL=D)

Simple and Flexible

  1. Easy wiring and installation saves labor costs.
  2. Supports remote upgrading of the program.
  3. PC programming tool provides easy parameter configuration, status monitor and troubleshooting.

Specifications

Content Parameters
Model B2P-2121 B2P-4091 B2P-4121
Nominal Input Voltage(V) 24 36/48 36/48
10s output Current Rating (A) 120A 90A 120A
1 Min output Current Rating (A) 90A 70A 90A
60 Min output Current Rating (A) 40A 30A 40A
Communication CAN / Serial
Operating Temperature -30℃~55℃
Storage Temperature -40℃~85℃
IP Rating IP65
Motor Type Brushless DC Motor (Bi-Di)

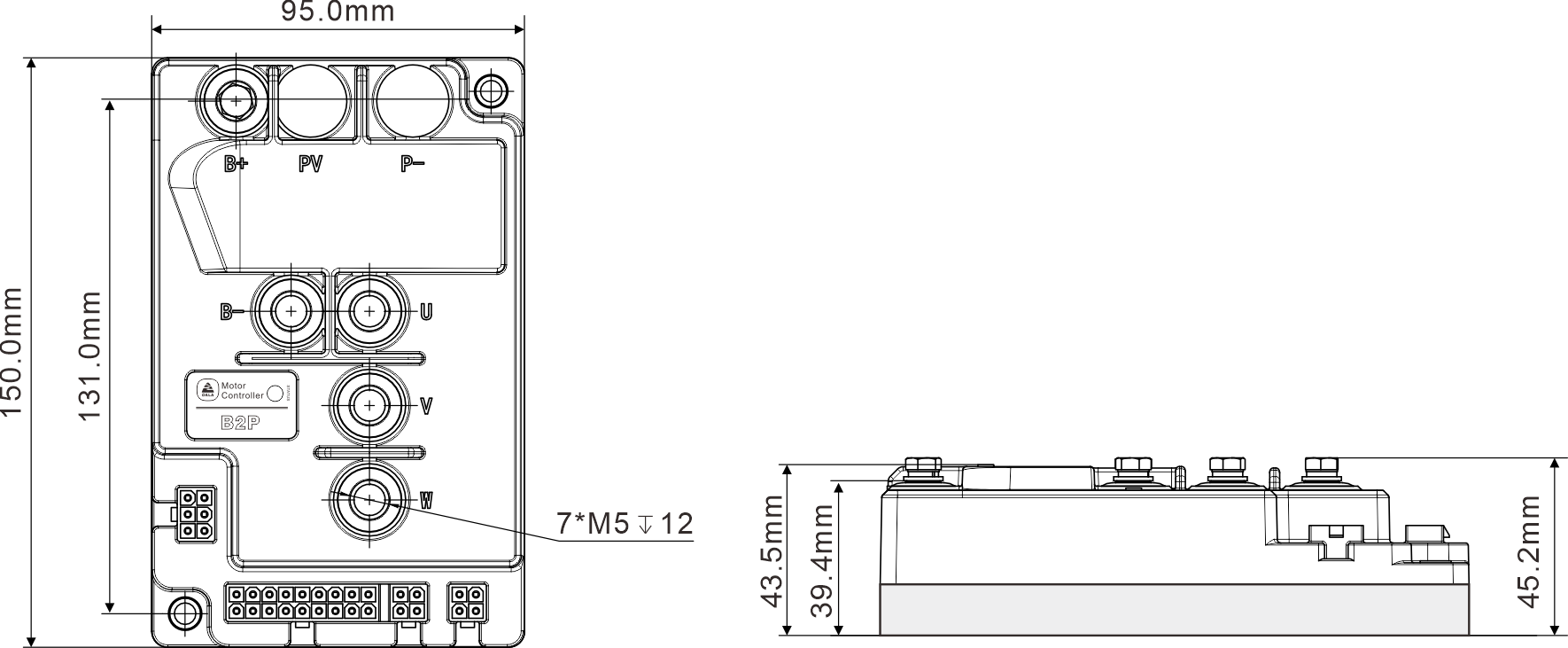

Dimensions

24V 36V 48V 120A 90A Bldc Motor Controller For Electric Vehicle Bldc Speed Controller
