24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
Specifications
Brand Name :
DALA
Model Number :
D2P
Place of Origin :
Chengdu,China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
standard packing, as customer demands
Delivery Time :
7 - 15 working Days
Payment Terms :
L/C,T/T,etc.
Motor type :
Brushed DC Motor (Bi-Di)
Function :
Traction
Appolication :
Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
Nominal Voltage Range (VDC) :
24V
Maximum Current :
100A
Size :
131*72*41mm
Description

D2P 24V 100A Brushed Motor Controller Simple and Flexible

Product Description:

D2P is a brushed DC motor controller designed for application in electric material handling vehicles, cleaning machines, etc., it’s designed and manufactured under leading standards and with many patented core technologies of DALA, aiming to serve our customer with highest reliability and best experience.
D2P software is programmable, and has different models supporting serial port or CAN communication protocols available.

Features:

Full Featured

  1. Rich peripheral connections available: 5 input switches, 2 NPN output, and several types throttles input.
  2. Build-in motor regenerative breaking function to recycle the energy and charge into battery when motor decelerates, which prolongs the battery life.
  3. Outstanding climbing ability due to the advanced motor control algorithm.

Robust Safety and Reliability

  1. Advanced MOSFET power section for smooth and seamless control.
  2. Excellent design for sealing and heat dissipation based on patented technologies.
  3. Comprehensive fault detections mechanisms, like the overvoltage, undervoltage, overcurrent, over-heat…etc.
  4. EM Brake with secure protection: short-circuit protection, open-circuit detection…etc.

Simple & Flexible

  1. Simple wiring and installing to realize the labor saving for customer.
  2. Support remote programming and SW upgrade.
  3. PC Windows programming tools available for status monitoring, parameter configuration and system diagnostic.

Specifications

Content Parameters
Model D2P
Nominal Input Voltage 24
20s output Current Rating (A) 100A
2 Min output Current Rating (A) 55A
60 Min output Current Rating (A) 35A
Communication Serial
Operating Temperature -30℃~55℃
Storage Temperature -40℃~85℃
IP Rating IP65
Motor Type Brushed DC Motor (Bi-Di)

Applications

24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More

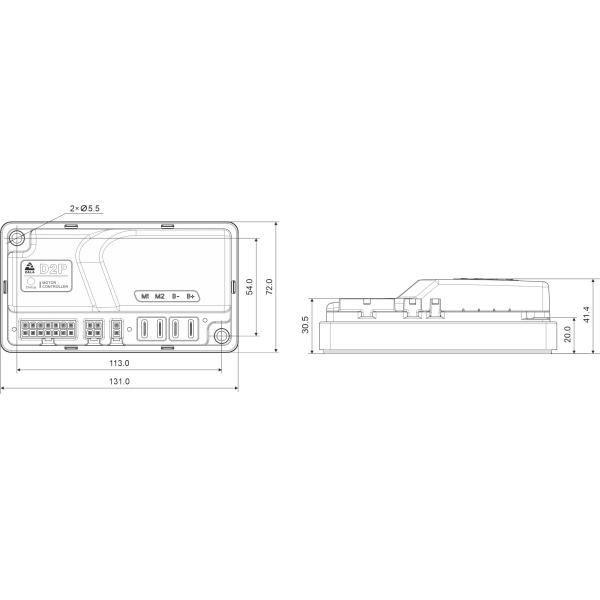

Dimensions

24V 100A Brushed Motor Controller for Forklift Electric Forklifts,Floor-Cleaning Vehicles,And More
