2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process
2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process
2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process
2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process
Specifications
Brand Name :
DaLi
Model Number :
DL-2700 cast film extrusion machine/ production line
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
100000--180000 USD Per Set
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
2-3 months
Packaging Details :
Regular Packing with blanket and stretch film or customized requirment package !
Name :
CPE/TPE hand glove casting film machine
Ram Material :
LLDPE/LDPE/POE/EVA/Elastomer/Polythylene
Suitable for :
sheet/ film
Shape of material :
granule
Power and frequency :
380V 3P/50HZ, it can be customized
Power(w) :
140---200KW
Screw design :
single screw extruder
Usage :
pp/pe cast film
Thickness :
0.015mm--0.1mm
Weight :
12T
Dimension(l*w*h) :
12mx4.5mx3.5m
Output :
2T--3T/24 hours
Diameter of Extruder :
Φ90---Φ120×35:1 X1
Winding section :
Three roller winding section
Description

hydraulic screen changer for T-die cast film production line; cost-effective cast extrusion film line for CPE/TPE gloves

semi-automatic casting film Machine for DL-2700

  • Overal view of the production line

Cast film extrusion machine is used to produce high quality transparent PE film, widely used for packaging and disposable glove application, by processing the low density polyethylene(LLDPE), Low density polyethylene(LDPE), elastomeric material(POE) as well as a portion of as main raw material for producing embossed film on machine equipped with embossed roller.

  • Full detaied of specifcations:

Material

 LDPE/LLDPE/POE/EVA grannule or recycled CPE/TPE granule

Working width

 24000mm max

Thickness range

 0.015mm to 0.1mm

Screw Dia. and L/D

 Φ90×35:1 X1
T die width 2700mm
Roller surface length 2700mm
Winding Diameter Φ500
Power supply Three Phase 380V( ±10% )50hz, Single Phase 220V 50Hz 3P
Mechanical speed: 20-60m/min
Extrusion capacity(Maximum) 100~150kg/h(varies with material)

Installation power

About 200kw ( actual consumption is 40%-50% of total

installation power)
Installation space

L=12M; W=4.5m; H=3.5m

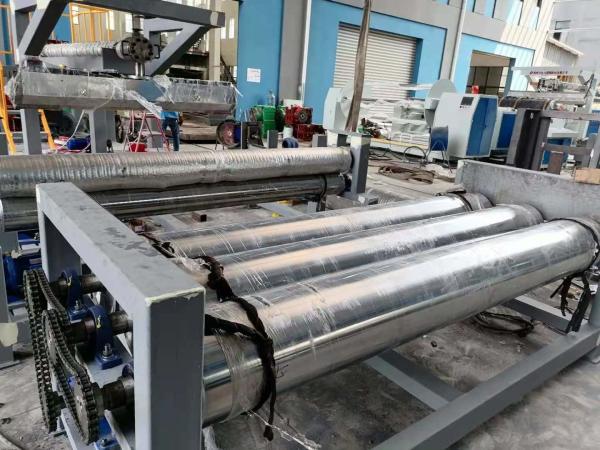

Scene of assmebly workshop

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

  • Showcase of the assmebly workshop

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

  • Aplication of the products

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages

according to customer's request.

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.

Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

Certification

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

Scenarions of busineess negotiation

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

Our Client representatives:

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

2700mm T Die Cast Film Machines EVA Flat Cast Extrusion Manufacturing Process

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.

FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3. What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
