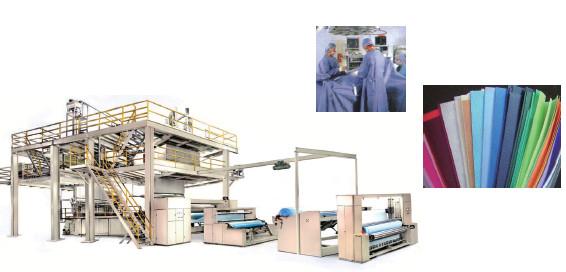

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm
S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm
S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm
S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm
S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm
S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm
S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm
S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm
Specifications
Brand Name :
DaLi spunbonded non-woven fabric production line serial
Model Number :
DL-1600/2400/3200/S/SS/SMS spunbonded non-woven fabric production line
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
180000--450000 USD Per Set
Payment Terms :
T/T
Supply Ability :
5 sets per month
Delivery Time :
2-3 months
Packaging Details :
Regular Packing with blanket and stretch film or customized requirment package !
Name :
PP spun bonded non-woven fabric production line
Plastic processed :
LLDPE/LDPE/HDPE
Application :
sheet/ film
Material :
granule
Voltage :
380V 3P/50HZ, it can be customized
Power(w) :
400--1600KW
Screw design :
single /double screw extruder
Usage :
Medical supplies
Width :
1600mm--3200mm
Weight :
35T
Dimension(l*w*h) :
35mx8mx6.5m
Description

spunbonded non-woven ; Non-woven fabric machin;S/SS/SMS spunbonded non-woven fabric production line 1600mm/2400mm/3200mm

S/SS/SMS Spunbonded no-woven fabric Production Line/ 1600/2400/3200

This equipment is a full-automatic one-time plane mask forming machine, which is used for the forming of one-time rectangular ear hanging three drawer mask. It can complete the automatic feeding, moulding, folding, pressure welding and ear band welding of the machine.

This product is used for the production of folding mask production line fully automatic machine,using ultrasonic technology, three to five layers of PP non-woven fabrics, meltblown fabrics, activated carbon and filter materials are fused, non-woven fabrics are fused, ear bands are fused, printed, folded, edge sealed and rolled, can produce 9001,9002 and other folding masks.

According to the raw materials used, the production of masks can reach such as FFP1, FFP2, N95 and other different standards, the whole process without manual operation, all by mechanical production, production is finished.

The product line absorbs the advanced technology from same machines made in other countries, featured with local design complete range of

specifications, superior performance, uniform web formation. With polypropylene as the raw material, the machine can produce white, colorful, ageing resistant, antistatic, antibioetic, flame retardant spun-bonded fabric rolls. The products can be used widely in industries, agriculture, medicine, labor protection, irrgation works, aviation, shoe industrial, packing and daily use artuccle etc.

Key pratmeters of the production line

Model 1600S 2400s 3200s 1600ss 2400ss 3200ss 1600sms 2400sms 3200sms
Screw Diameter Ø105-135mm Ø105-150mm Ø105-170mm Ø105-135mm Ø105-150mm Ø105-170mm Ø105-135mm Ø105-150mm Ø105-170mm
L/D 30:1 30:1 30:1 30:1 30:1 30:1 30:1 30:1 30:1
Output 1500T/Y 2000T/Y 3000T/Y 2600T/Y 3800T/Y 5200T/Y 3200T/Y 4700T/Y 6200T/Y
Max. Film Width 1600mm 2400mm 3200mm 1600mm 2400mm 3200mm 1600mm 2400mm 3200mm
Basic Weight 10-250glm2 10-250glm2 10-250glm2 10-250glm2 10-250glm2 10-250glm2 10-250glm2 10-250glm2 10-250glm2
Fiber Number 2D-4D 2D-4D 2D-4D 2D-4D 2D-4D 2D-4D 2D-4D 2D-4D 2D-4D
Total Power 400kw 550kw 660kw 660kw 800kw 1200kw 1100kw 1300kw 1600kw
Speed 120m/min 120m/min 120m/min 220m/min 220m/min 220m/min 250m/min 250m/min 250m/min

FLow Chart

Recycling raw material + side material—melting and extruding—filtering—measuring—filtering—spinning—cooling—air dragging—air dispersing—air-laid web forming——cooling—winding—slitting—product packing—entering into warehouse—conducting sales.

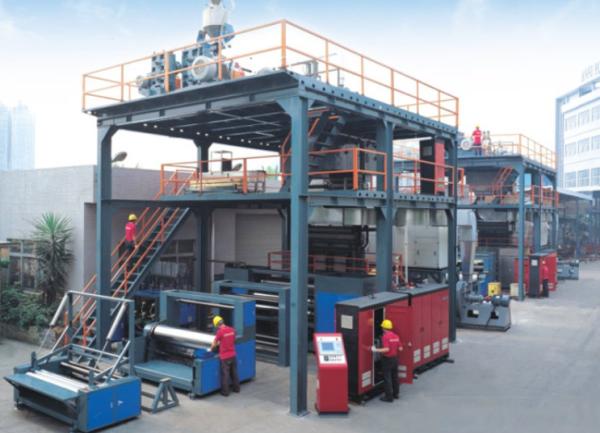

Scene of the asembly of workshop

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

  • Showcase of the assmebly workshop

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

  • Aplication of the products

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

  • Packing & Loading Details (or customized packing instruction)

1. Simply wrapped by the blanket first and the tight it by the cling stretch film.

2. Export standard are supplied with well packed by plywood cartoon or inron cartoon. We can make the packages according to customer's request.

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

  • Briefing about the company

Changzhou Da Li Plastic Machinery Co., Ltd.

Changzhou Xin Da Li Plastic Machinery Co., Ltd. is a subsidiary of Changzhou Da Li Plastic Machinery Co., Ltd.,

located in Changzhou Wujin Science and Technology Industrial Park, was established in March 2015 with a registered

capital of 10.8 million yuan, covering an area of over 10,000 square feet. We provide our clients with all kinds of plastic

machinery products and technical services.

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

Certification

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

Scenarions of busineess negotiation

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

Our Client representatives:

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

S SS SMS Pp Spunbond Non Woven Fabric Making Machine 1600mm 2400mm 3200mm

Our Services

One station service to make sure our customer get ancillary equipments and good service.

(1) Professional advice and rich experience help to choose machine.

(2) Warranty time: All machines are guaranteed for one year.

(3) Before the dispatch the equipment, we will conduct the commission of the machine and invite the client representative join us to witness it.

Once the machine reached the site of the clients, we will send our technicals to mantle up and commisson the machine, and train the local

employee.

(4)Any problem: If you have any questions or any demands, we will reply you within 24 hours inquiry.

(5) Additives: installation book, Manual book, tool box will be sent with machine.

Product Quality

All products are guaranteed for one year, if any problems happen in guarantee period, our company will maintain for free.

Technical Service

We can provide design, installation and debugging services or remote maintenance teaching.

Delivery The Cargo To Nearest Port

We will arrange the shipment and delivery the cargo to your nearest port, save time and cost.

Detail Product Information

Provide picture, video, instruction and product brochure.

Reply Timely

24 hours hot line ,we will reply email within 12 hours.

FAQ

1. What about your machine quality?
Our factory has more than 22 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate;

already exported to many countries and areas; already got customer’s good reputation.
2. What about your machine price?
Anytime we will garanteen quality first, no matter price is good or not for us. Quality is first, on the top quality basis, of coursse you will get r

easonable and satisfied price!

3. What about the delivey date?

Due to the non-standard size machine, we need to book all the relative parts according to the requirement of the clients, the delivery date would

be 1-- 3 moths accordingly.
3. How can you ensure the machines' quality after we put the order?
Before the delivery, we will send you machines' pictures and videos, or you can come to our factory to make the quality checking by yourself,

or by the third party inspection organization that contacted by your side.
