Bunched Fiber Optic Pigtail FC / PC , 12 Core SM Fibra óptica pigtail
Bunched Fiber Optic Pigtail FC / PC , 12 Core SM Fibra óptica pigtail
Specifications
Brand Name :
OEM/ODM
Model Number :
Bunched optic fiber Pigtail
Place of Origin :
Shenzhen China
MOQ :
NO MOQ
Price :
Inquiry us now
Packaging Details :
PE bag in carton
Delivery Time :
10-15days
Payment Terms :
T/T, Western Union
Supply Ability :
10000pcs per week
Certification :
CE
Name :
Fiber Optic Cable
Model :
Fiber Optic Cable pigtail SM
Connector :
FC/SC/LC/ST
length :
1.5M
Description

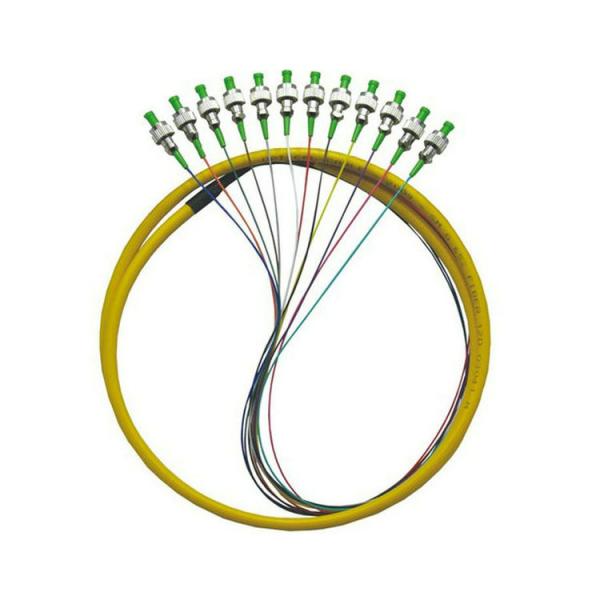

Bunched Fiber Optic Pigtail FC / PC , 12 Core SM Fibra óptica pigtail

Bunchy pigtails use a special device to protect the separated optic fibers(for example 12 cores),through connectors to accomplish links with other cables.

Pigtail is a length of fiber permanently attached connector only at one end. Available in a large range of colors and lengths, we have the cable that can fit every situation. and pigtail assembled with various types of connectors (such as FC, SC, ST, LC,MU,MTRJ etc.) There are three kinds of polished fiber end-face: PC, UPC and APC .

Specification:

SM MM
connector type FC/PC FC/UPC FC/APC FC/PC
SC/PC SC/UPC SC/APC SC/PC
ST/PC ST/UPC ST/PC
LC/PC LC/UPC LC/PC
MU/PC MU/UPC MU/PC
return loss ≥45dB ≥50dB ≥60dB ≥35 dB
insertion loss ≤0.2dB
operating temperature -40°C~+80°C
repeatability ≤0.1dB
Interchangeability ≤0.2dB
plug times 1000 times

Applications:
Data centers project,Railway project,Commercial and factory project,Education project,Hospital project
Goverment project,Highway project,Mobile data center,Mobile building,Modular office,Networking
Communications,Security,Process control,Power generation,Urban rail station,Cable routing,Signal cable
Shopping mall,Electronic application,Computer network system,Voice communication system
Intelligent subsystem,Wiring system,Integrated wiring system,Video transmission.
Video monitoring, CATV, Optical fiber sensor, Optical fiber communication system, WAN , MAN, FTTH, LAN ,PON,

Why choose us?
1) OEM/EDM is available, we are professinal manufacturer.
2) Fast lead time is our advantage, For small order quantity, it would take 5-7 days to finish the production.
3) Excellent after-sales service. All the after-sale feedback will be handled within 12 hours.
