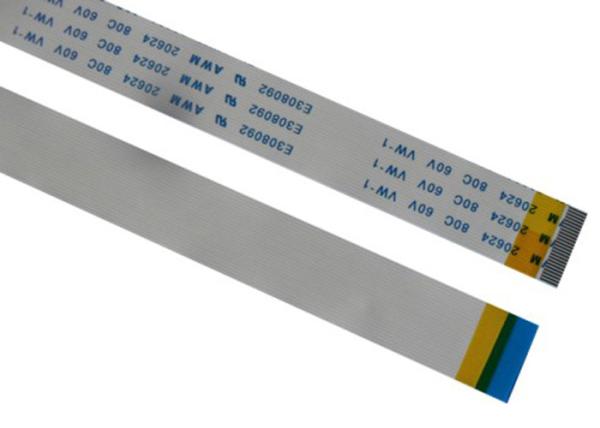

60V Voltage Flat Ribbon Cable Color Customized , 6 Pin Ribbon Cable PVC Insulation
60V Voltage Flat Ribbon Cable Color Customized , 6 Pin Ribbon Cable PVC Insulation
60V Voltage Flat Ribbon Cable Color Customized , 6 Pin Ribbon Cable PVC Insulation
60V Voltage Flat Ribbon Cable Color Customized , 6 Pin Ribbon Cable PVC Insulation
60V Voltage Flat Ribbon Cable Color Customized , 6 Pin Ribbon Cable PVC Insulation
60V Voltage Flat Ribbon Cable Color Customized , 6 Pin Ribbon Cable PVC Insulation
Specifications
Brand Name :
OEM/ODM
Place of Origin :
Shenzhen China
MOQ :
1000
Payment Terms :
Western Union, T/T
Model Number :
Flat Ribbon Cable
Certification :
CE
Price :
0.5-3USD/EA
Supply Ability :
20000PCS per day
Delivery Time :
10-15 days upon receipt of payment
Packaging Details :
PE inner, carton outer
Color :
Optional
Length :
Optional
Conductor Gauge :
36-14AWG
Insulation Material :
PVC
Operating Temperature :
-40 ° C ~ + 80 ° C
Rated Voltage :
60V
Description

60V Voltage Flat Ribbon Cable Color Customized , 6 Pin Ribbon Cable PVC Insulation


Description

FFC Pitch 0.5mm,1.0mm,1.25mm, 2.0mm and 2.54mm
FFC Conductor 0.05*0.5,0.1*0.65,0.05*0.5
FFC Insulation 0.06,0.1,0.08
FFC Reinforcing Tape 0.16,0.225,0.25
FFC With Blue stiffener 4-8MM , 3-5MM
FFC Sides Same side or Opposite side
FFC Pin

customed

Pitch 0.8 1.0 1.25 2.0 2.54
No.of conductors(N) 4-120 3-100 2-80 2-40 2-40
Total Pitch 0.8*(N-1) 1.0*(N-1) 1.25*(N-1) 2.0*(N-1) 2.54*(N-1)
Cable Width(W) 0.8*(N+1) 1.0*(N+1) 1.25*(N+1) 2.0*(N+1) 2.54*(N+1)
Conductor size 0.1X0.6 0.05X0.65 0.1X0.6 0.05X0.65 0.035X0.65 0.1X0.8 0.05X0.8 0.035X0.65 0.1X0.65 0.1X0.8

0.1X0.8
0.1X1.27


specification

Insulation thickness: 0.043 or 0.06 or 0.1
Strip Length: 2-10
End Thickness : 0.25-0.35
Supporting Tape Length: 4-20
Total Length: 20-50000
Conductor Material: 1.Tin coated flat copper wire
2.Nickel plated copper, gold plated touching face
Insulator Material: Flame resistant adhensive on polyester film

Why choose us?

1. We have good long-term business cooperation relationship with many famous connector brands, such as MOLEX, TYCO, JAE, JAM, YEONHO, JST, TYU, etc, which makes it Cost-effective and faster delivery.

2. We have various kinds of moulds for the cable assemblies, USB 2.0 AM, USB 2.0BM, Micro B, USB 3.0, TYPE C, HDMI, VGA,DB...almost standard versions we have;

3. We have various kinds of wires and cables to choose from, UL PVC single-core wire, silicone wire, teflon wire, Halogen free wire, multi-core cable, flat cable etc. All of them are ROHS, Reach, UL certified to meet the needs of export.

4. Our Product prototyping services.

5. Excellent service

Customer’s inquiry will be replied within 8 hours. During the whole period, from inquiry to shipment, there will be professional foreign trade sales and customer serivice who keep clients informed of order status all the time.

6. Various shipment methods

We always get prepaid freight discount from our logistics supplier for our shipment, UPS, DHL, FEDEX, TNT Air shipment, sea shipment. our customers' logistics company can be used as well,it depends
