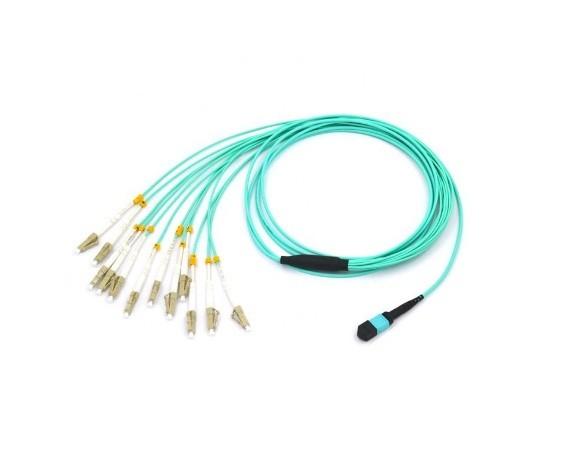

MPO To LC Breakout Duplex Optical Patch Cord For Data Center OM4 PVC Material
MPO To LC Breakout Duplex Optical Patch Cord For Data Center OM4 PVC Material
Specifications
Model Number :
Fiber Optic Patch Cord
Certification :
CE
Place of Origin :
Shenzhen, China
MOQ :
NO
Price :
Contact us for the price
Payment Terms :
T/T, Western Union
Delivery Time :
10-15 days upon receipt of payment
Packaging Details :
PE Bags
Application :
FTTH/LAN/Telecommunication equipments
Connector type :
SC/FC/LC/ST/MTRJ/MPO
Length :
1m 2m 3m or Customized
Material :
PVC,LSZH
Fiber count :
Duplex
Polish :
PC/UPC/APC
Description

12 cores Breakout MPO to LC Fiber Patch Cord for Data Center

The MT-RJ and MPO are the MT series. Small size, Multi-channel is the most prominent feature, which greatly facilitates the high-density wiring. The MT series connectors have been widely applied to theCATV, Multimedia, Gigabit Ethernet, active device interface, data processing networks, telecommunication networks, asynchronous Transmission Mode (ATM). The MT-RJ is duplex ferrule plug-jack (RJ-45) design and the MPO can be 12 fibers, the MPO patchcord cable can be ribbon fiber or breakout fiber, also, the MTP is available; the MT series patchcord have low insertion loss and high precision guide pins exact alignment.

Features

With 12-fiber MPO/MTO connector standard

Available in OM3 and OM4

Interface polished type has PC, UPC and APC

Support use in attaching directly to 40/100G transceivers

For transition from trunk backbone assemblies to fiber rack system

Discrete connectors are heat-cured and use ceramic ferrules and sleeves

Fan-out fibers from MPO/MTP connectors into individual simplex or duplex

Customized for length, connector type, fiber count, and labeling

MPO Connector StandardSM MT Ferrule Low LossSM MT Ferrule Standard
MM MT Ferrule		 Low Loss
MM MT Ferrule
Polish UPC APC UPC APC UPC UPC
Insertion Loss(dB) Typical 0.5 0.5 0.3 0.3 0.5 0.3
Maximum 0.7 0.7 0.5 0.5 0.7 0.5
Return Loss(dB) 45 60 60 45 20 20
Exchangeability(dB ) ≤0.3
Durability(dB) <0.2(500Matings,per EIA-455-21A)
Tensile Strength(dB) ≤0.3(Max 66N)
Operating Temperature (℃) -20~+60
Storage Temperature(℃) -40~+80
