Specifications
Brand Name :
GTEAK
Model Number :
GTKS002
Place of Origin :
Guangdong, China
Use :
Semi-outdoor
Tube Chip Color :
White, green, blue, red, or double color
Display Function :
Messages
Pixels :
6mm
Screen Dimension :
Customized Size
Brightness :
6500cd/sqm
Color :
White,amber, red, green,blue
LED chip :
Epistar
Pixel pitch :
6mm
Warranty :
Two Years
Keyword :
car led display screen
Item :
remote control car led display screen
Product name :
car led display screen message board
Module size :
192mm*96mm
Viewing angle :
140H
Packaging Details :
Carton box, Wooden carton
Port :
Shenzhen
Supply Ability :
1000 Piece/Pieces per Week
Price :
$80.00-200.00/pieces
Description

Remote control car led display screen message board

1. Housing color is Black
2. Housing material is Aluminium
3. Font size of text message is adjustable
4. Display function is text message and graphics
5. Flash memory can store several different messages
6. Input voltage is AC 110V-230V; DC 9V-36V if vehicle application
7. Signal connection cable interface is USB(default), RS232, RS485 or TCP/IP network
8. Multi-actions for displaying, including snow, spray, twinkle, rotate, scroll, star burst, wipe and etc
9. Text message can be scrolling and programmed by computer via USB interface
10. Product can support most languages in the world, English, Spanish, Russsian, French, Hebrew, etc

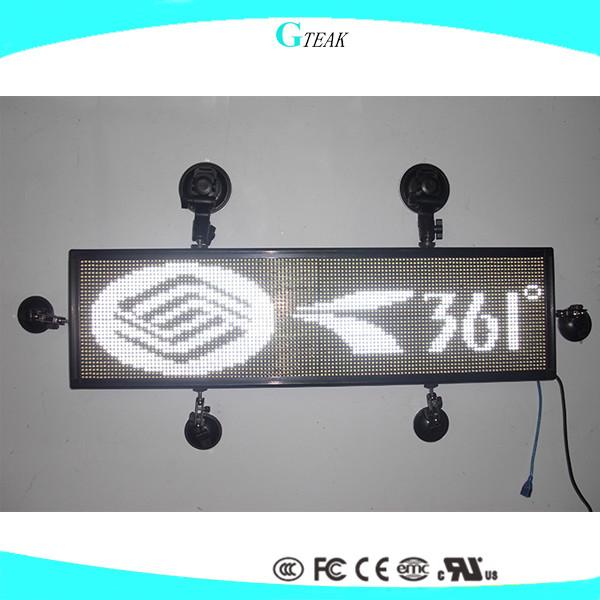

Wiht suckers on the window glass:

Epistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B DistributionEpistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B Distribution

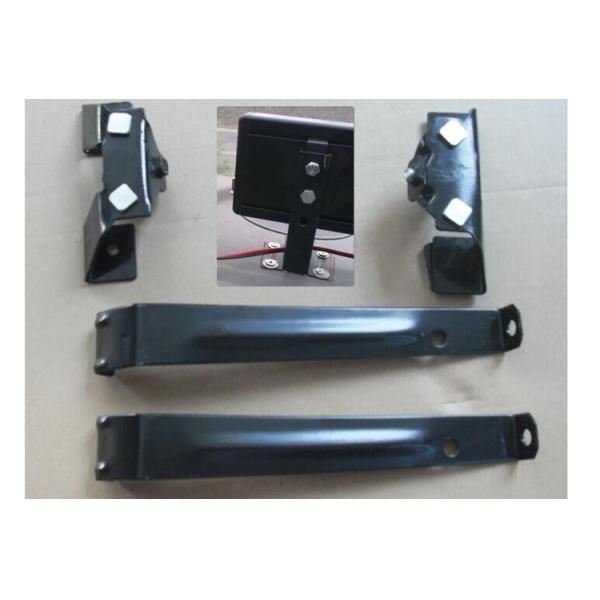

With stands fixed installed:

Epistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B DistributionEpistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B Distribution

How to use our led display board?

1.Use DIP technology to make the LED display have good waterproof and anti-humidity when used.

2.Stable cabinet, stronger without distortion, anti-rust.

3.Synchronously adjust the brightness and color to make the true and exquisite image.

4.High contrast, high refresh rate make the image without any delay, trailing smear.

5.Compatible to many signal sources such as AV, S-Video, DVI, VGA, YPbPr, HDMI,SDI,DP etc.

6.Special wooden box package production protect the whole screen system.

7.Unique waterproof cabinet design meet the standard IP65 which can be used outdoor directly.

8.Handles at two sides of cabinet make the screen installed easily

Our most attention is the product quality.

Our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 10000 hours.we assure high brightness and long lifespan.

Pixel Pitch4mm5mm6mm
Physical density62500 dots/Sqm40000dots/Sqm27777dots/Sqm
LED Display Size896mm x 256mm960mm x 320mm1152*384mm
Module Size128*128mm160*160mm192*192mm
Maximum power210W/per set180W/per set195W/set
Average power30W-80W/set20W-80W/set20W-80W/set
Pixel configuration1R1G1B(SMD3528)
Driving method1/8scan
Display resolution32* 32=1024dots
Working voltage5V
Viewing angle120/120
Brightness≥2500
IP ratingIP65
Frame Frequency≥60 HZ/S
Refresh frequency≥600 HZ/S
Working environment
temperature
-40°C-60°C
Working environment
humidity
10%-90% RH
Input signalRF\S-Video\RGB etc.
Working life≥96000 hours
Display working voltageAC46-54HZ, 220V±15% 110V ±15%
Control System
(RGX brand)
RGX 3G, Wifi Internet

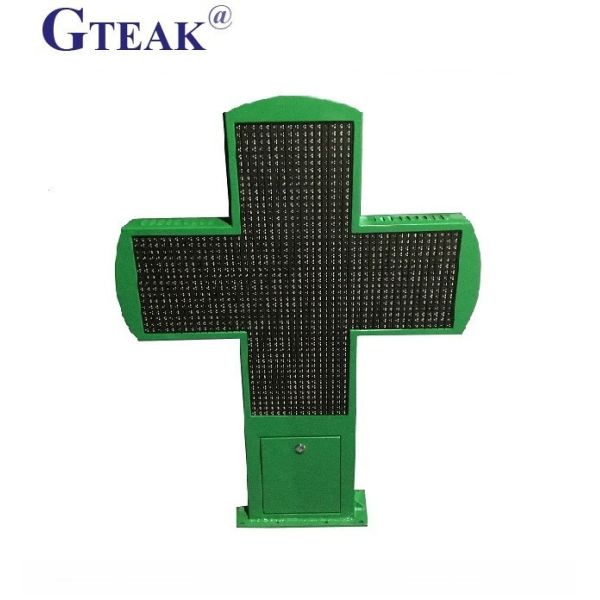

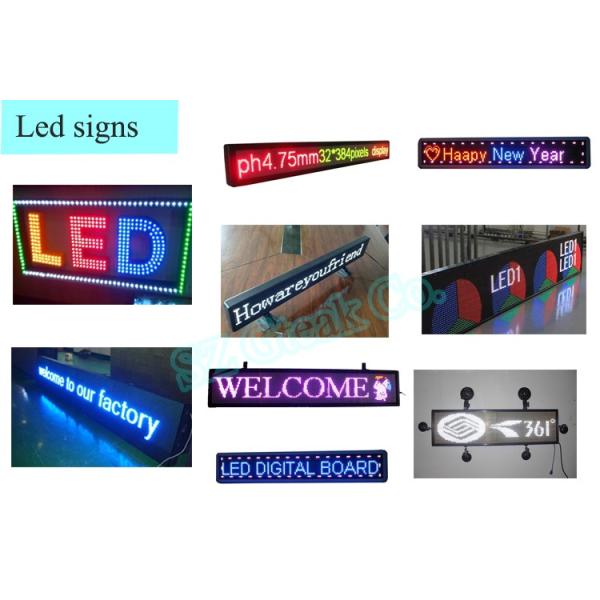

Other led signs we are producing.Please kindly get back to us the message screen you want to have ( the size of the screen, what color you need, where to install it ect, so that we can check out the details as per your project specifications)

Epistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B Distribution

Epistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B Distribution

Company Information

Epistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B DistributionEpistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B DistributionEpistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B DistributionEpistar LED Chip Semi-outdoor Remote Control Car LED Display Screen Message Board for B2B Distribution

Our Services

1)Your inquiry related to our products or price will be replied in 24hrs

2)OEM&ODM,any your customized lightings we can help you to design and put into product

3)Distributoership are offered for your unique design and some our current models

4)Protection of your sales area,ideas of design and all your private information

5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win

6) Trade assurance ( Provided by Alibaba and Gteak to make sure your payment, shipment, goods' quality security and ensurance)
