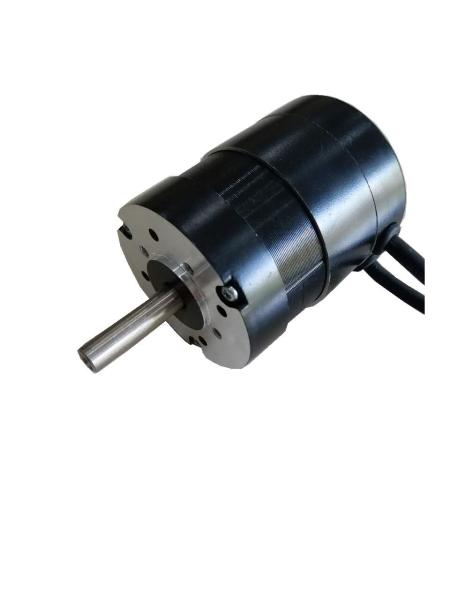

80mm BLDC Electric Motor 3 Phase 1.5N.M Waterproof
80mm BLDC Electric Motor 3 Phase 1.5N.M Waterproof
Specifications
Brand Name :
PV
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50000 Per Month
Delivery Time :
3-4weeks
Packaging Details :
cartons
Product Name :
Bushless Motor
Torque :
1.5N.m
Type :
brushless dc motor
Efficiency :
1PCS~5PCS
Usage :
Electric Bicycle, Home Appliance, Solar tracker
Protect Feature :
Waterproof
Description

Waterproof 1.5N.m 80mm brushless dc motor

  • Product Name: Brushless DC Motor
  • Number of Phase: 3 Phase
  • Number of Poles: 4 Poles /8 Poles /10 Poles
  • Rated Voltage: 24v /36v /48v /310v
  • Rated Speed: 3000rpm /4000rpm /or customized
  • Rated Torque: Customized
  • Rated Current: Customized
  • Rated Power: 23w~2500W

Product Description
1. Three phase BLDC motor;
2. Made of anti-high temperature permanent magnet and high quality cold-rolled steel sheet;
3. CNC machine engraved axle, high quality bearing;
4. Alluminium alloy cap, plastic insulation, copper wires auto-wired.
5. Featured by its low noise, low vibration, low heating, of stable performance;
6. Excellent internal damping, can be used by different industries and under any circumstances, long lifespan.
Date Sheet
Number Of Phase
Phase
3
Number Of Poles
Poles
4
Rated Voltage
VDC
48
Rated Speed
Rpm
3000
Rated Torque
N.m
0.35
0.7
1.05
1.4
Rated Current
Amps
3
5.5
8
10.5
Rated Power
W
110
220
330
440
Peak Torque
N.m
1.05
2.1
3.15
4.2
Peak Current
Amps
9
16.5
24
31.5
Back E.M.F
V/Krpm
13.5
13.3
13.1
13
Torque Constant
N.m/A
0.13
0.127
0.126
0.124
Rotor Inertia
g.c㎡
210
420
630
840
Body Length
mm
78
98
118
138
Weight
Kg
1.4
2
2.6
3.2

Product Series
Poles No.
Rated Voltage
Rated Speed
Rated Torque
Rated Power
Motor Length
42mm BLDC Motor
8
24v
4000rpm
0.0625~0.25N.m
26~105w
41~100mm
57mm BLDC Motor
4
36v
4000rpm
0.055~0.44N.m
23~184w
37~107mm
60mm BLDC Motor
8
48v
3000rpm
0.3~1.2N.m
94~377w
78~120mm
80mm BLDC Motor
4
48v
3000rpm
0.35~1.4N.m
110~440w
78~138mm
86mm BLDC Motor
8
48v
3000rpm
0.35~2.1N.m
110~660w
71~138.5mm
110mm BLDC Motor
8
310v
3000rpm
1.65~6.6N.m
518~2073w
83~173mm
130mm BLDC Motor
10
310v
3000rpm
2.39~11.94N.m
750~2500w
115~190mm
Above only for representative products, products of special request can be made according to the cust
