0520-XH-002 6.2 mm 4A 5V Solenoid Door Lock
0520-XH-002 6.2 mm 4A 5V Solenoid Door Lock
0520-XH-002 6.2 mm 4A 5V Solenoid Door Lock
0520-XH-002 6.2 mm 4A 5V Solenoid Door Lock
0520-XH-002 6.2 mm 4A 5V Solenoid Door Lock
0520-XH-002 6.2 mm 4A 5V Solenoid Door Lock
0520-XH-002 6.2 mm 4A 5V Solenoid Door Lock
0520-XH-002 6.2 mm 4A 5V Solenoid Door Lock
Specifications
Brand Name :
DASON
Model Number :
0520-XH-002
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
500
Price :
1.7~3USD
Payment Terms :
T/T
Supply Ability :
300000
Delivery Time :
30day
Packaging Details :
Carton packing
Insulaiton level :
CLASS B(130°)
High voltage :
700V
Voltage :
5V
Temperature range :
-5℃-45℃
Material :
SPCC
Biometry :
50,000 times
Description
Solenoid manufacturer / micro shared power bank electromagnetic lock / electromagnet intelligent electronic control lock
Product Description
Model Number
DSN-0520L-01
Place of Origin
China
Current
4A (REF)
Working voltage
DC5V ±10%
Potence
4V products can be started normally when powered on
Insulation resistance
50MΩ MIN, DC500V
High voltage
1 second AC700V
Insulaiton level
CLASS B(130°)
Relative humidity
20%-85%
Instructions for use and installation:
1. The red and black lines are the power lines of the electromagnetic lock, regardless of the positive and negative poles. The input voltage is DC5V and the current is 5A. The yellow and blue lines are the signal detection feedback lines.
2. When the switch is connected to the power supply, the exposed length of the lock tongue is 6.2 mm, and the retracted length is 3.5 mm, and the power bank is opened; when the power is not connected, the locking tongue extends 6.2 mm by the internal spring force, and the power bank is locked.

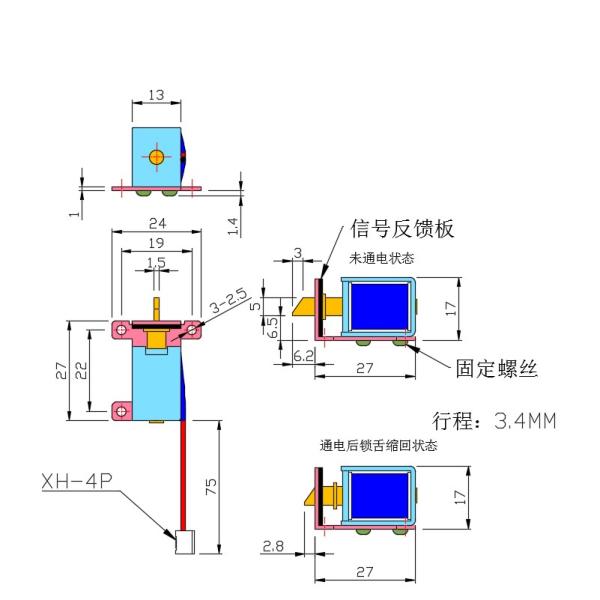

3. Installation dimension diagram:
0520-XH-002 6.2 mm 4A 5V Solenoid Door Lock
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Port
Guangdong, shenzhen
Lead Time :
Quantity(Pieces) 1 - 500 501 - 1000 1001 - 5000 >5000
Est. Time(days) 10 15 20 To be negotiated
