Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid
Specifications
Brand Name :
DASON
Model Number :
T1348
Certification :
ISO9001
Place of Origin :
China
MOQ :
500
Price :
4~8USD
Payment Terms :
T/T
Supply Ability :
300000
Delivery Time :
30day
Packaging Details :
Carton packing
working voltage :
12V/24V
purpose :
Lifting
Height :
27 mm
Stroke(mm) :
0-10MM
Holding Force :
1-4N
Install Style :
screw
Core Components :
copper coil
Work Model :
Holding Type
Description
Quick Details
Place of Origin:
China
Brand Name:
Dason
Model Number:
TU1348
Product Name:
push pull high speed tubular solenoid
Rated Power(W):
8
Work Model:
Pull Push type
Holding Force (N):
1-4N
Stroke(mm):
0-10
Reset Time(s):
0.2
Service Life:
500 Thousand Times
Install Style:
screw
Insulation Class:
B

Packaging & Delivery
Packaging Details
Product Size(mm): D13*L48
Carton Box Size(mm): 350*310*180
N.W.(KG): 0.06
G.W.(KG): 0.07

Product Description

Specifications
Brand Dason Product Name tubular push pull solenoid
Model TU1348 Rated Voltage DC 12v 24v
Power 8w Force 0-4 N
Waterproof Class IP65 Duty Cycle 1-100%
Stroke 0-10mm Material Metal, Electronic Parts
Action Form Holding type Weight(N.W.) 0.06kg
Install Style Screw Thread Size & Deepth(mm) -
Hi-Pot Test AC 600V 50/60Hz 2s Insulation Class B
Packaging Details

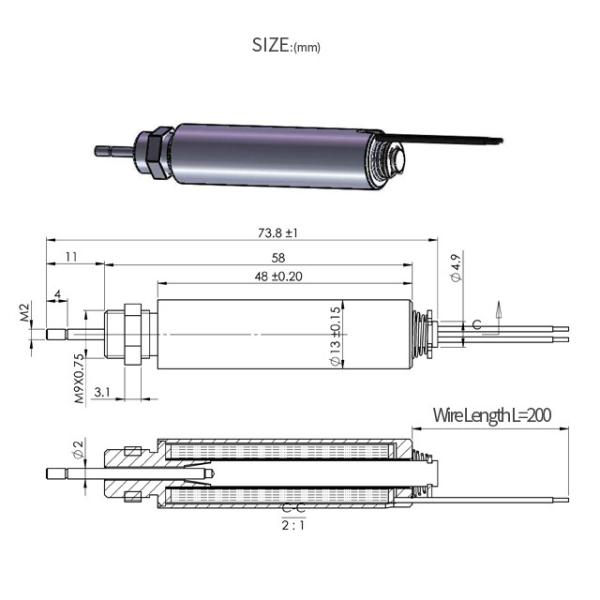

Body Size D13*L48(mm) Carton Box Size(Standard) 350*310*180(mm), accepted custom

tubular solenoid features

1. Push-pull type, linear motion, DC solenoid electromagnet, supply reset spring or no reset spring plunger.

2. Tubular solenoid are excellent used for locking solenoids, whether for doors, security or industrial machiney.

3. Typically used for longer stroke, can also be designed for high force heavy duty applications.

4. Single hole mounting holes, easy to install, accepted custom as you needed.

Low Cost Long Storke Electric Control Push Pull High Speed Tubular Solenoid

ur Products:
circular holding solenoid; square holding solenoid; open frame solenoid; tubular solenoid; keep solenoid; lock solenoid
MOQ:
2 PCS; small orders can be acceptable if we have stocks of this product
Packing:
Carton, standard dimension(L*W*H): 350*310*180, customize according to customer's requirement
Delivery Time:
Shipped in 3-8 days after payment
Supply Ability:
5000Pcs per week
Payment Terms:
T/T; PAYPAL etc.
Shipping:
Sea /air freight, Express (DHL, UPS, TNT, FEDEX, EMS etc).
