Smart Home Motor 260A 5V 12000RPM 0.31W Small Gear Motor Go-Gold

Lead Time

Performance specification

Essential Detials

Warranty: 3years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-1024DC5

Usage: Door Lock

Type: Small Gear Motor

Rated Torque: 2.5G.Cm

No-load Speed: 14800RPM

No-load Current: 30mA

Product Name: Door Lock Motor Gear Motor

Certification: ISO

Rated Voltage: 5V

Keywords: Smart Door Lock Motor

Noise: Low

Dimensions

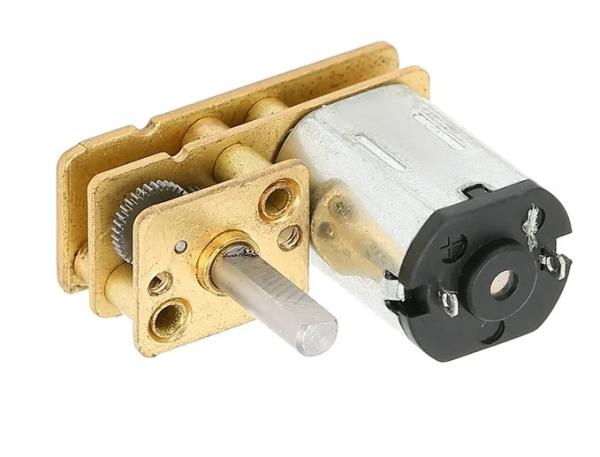

Motor Picture

Motor Application

About Gear Motor

Gear Motor is an independent component consisting of gear transmission, worm transmission, and gear-worm transmission enclosed in a rigid shell. It is often used as a reduction transmission device between the prime mover and the working machine. Or the actuators play the role of matching speed and transmitting torque.

Gear Motors are generally used for transmission equipment with low speed and high torque. Its basic working principle is: the power of the motor and high-speed operation is passed through the gear with a small number of teeth on the input shaft of the reducer to mesh with the large gear on the output shaft to achieve deceleration. Purpose, an ordinary reducer will also have several pairs of gears with the same principle to achieve the ideal reduction effect. The ratio of the number of teeth of the large and small gears is the transmission ratio.

Advantages of Gear Motor

• The reduction motor is manufactured in accordance with international technical requirements and has high technological content.

• Compact structure, reliable and durable, strong overload capacity and high power.

• Low energy consumption, superior performance, reducer efficiency reaches over 95%.

• Low vibration, low noise, high energy saving, using good steel material and rigid cast iron box. The gearbox motor adopts a special aluminum alloy die-cast box, and the tooth surface has undergone high-frequency heat treatment

• Stable and reliable operation: The gearbox has stable and reliable operation, high transmission power, low noise during use, and can withstand high loads.

The Role of Gearbox in Gear Motor

• Acceleration and deceleration are often referred to as variable speed gearboxes.

• Change the transmission direction. For example, we use two gears to transmit the force vertically to another rotation axis.

• Change the rotational torque. Under the same power conditions, the gear that rotates faster achieves the purpose of separating the engine from the load.

• Clutch function: We can separate the engine from the load by separating the two originally meshed gears. Such as brake clutch, etc.

• Distribute power. For example, we can use one engine to drive multiple slave shafts through the main shaft of the gearbox, thereby realizing the function of one engine driving multiple loads.
