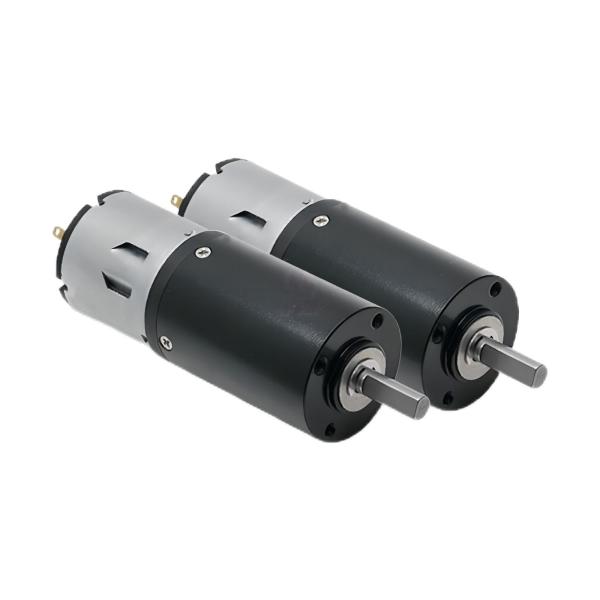

Smart Home Motor 24V 2.28A 20RPM For Intelligent Lock Gear Motor GO-GOLD

Lead time:

Product Description

Essential details

Application: Intelligent Lock

Model Number: KG-3065GM24

Warranty: 3 Years

Place of Origin: Guangdong, China

Rated Voltage: 24V

Rated Power: 2.05W

Non-Load Speed: 22RPM

Non-Load Current: 0.5A

Key Word: Gear Motor

Rated Speed: 20RPM

Rated Current: 2.28A

Rated Torque: 980mN.m

Drawing

Sample

Application

Product introduction

Gear reduction motor refers to the components of gear reduction box and motor (motor). This component can also be referred to as a gearbox motor or a reduction motor, which is usually supplied in complete sets after integrated assembly by a professional reduction machine manufacturer.

Gear motor is widely used, which is an indispensable power transmission equipment for automatic mechanical equipment.

Working principle

Gear motor is generally through the motor, internal combustion engine or other high-speed operation of the power through the gear reducer (or gearbox) input shaft of the pinion to drive the big gear to achieve a certain reduction in speed, and then the use of multistage structure, you can greatly reduce the speed to increase the output torque of the motor.

Its core "force deceleration" function is to use all levels of gear transmission to achieve the purpose of reducing speed, and the reducer is composed of gear pairs at all levels.

Features of Products

• Highly Standard Modular Designed: The products are connected with and driven by different types of motors or other kinds of input power .The same type geared motor can be adapted to optioned powers of motors. It is therefore easy to realize different solutions for varied requirements.
• Ratio: Featured many closely divided ratios and wide ranges of them. Very big final ratios can be obtained through combined unites to reach extremely low output speeds.
• High Strength, Compact Dimension: Housings are made of high strength cast iron. Gears and shaft gears are finished with gas carburising process and precise grounding to sequentially get high loading capacity of per certain volume.
• Long Service Life: Under the conditions of accurately selecting type size and the normal maintenance and use, main components ( except those easily-disabled parts ) can last as long as up to more than 25,000 hours. Easily-disabled parts include lubricating oil, oil seals, and bearings.
• Low Noise: All key components are finished by precisely machining, accurate assembly, and finally tested, and therefore, fairly low noise is reached.
• Highly Efficiency: The efficiency of gear unit is more than 95%, The efficiency of worm gear unit can reach 89%. 8,Large Radial Loading Abilit.
