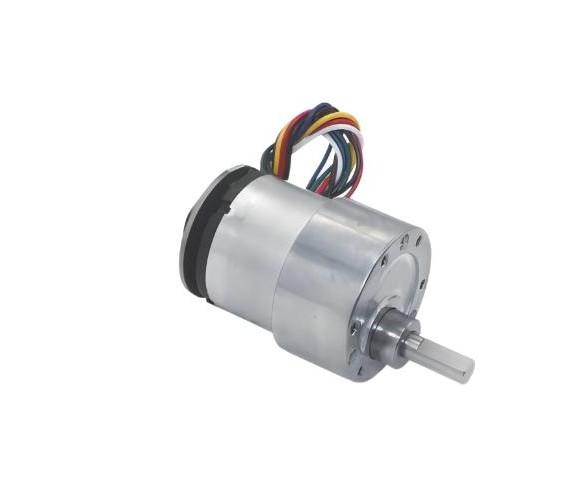

Smart Home Motor 7-1000RPM 6-12V 3W Gear Motor For Electric Curtains

Lead Time

Product Description

Essential Details

Application: Electric curtains

Rated Voltage: 6-12V

Model Number: KG-3752GM12

Size: 19-29MM

Warranty: 3 Years

Stall torque: 0.5-40mN.m

Direction of rotation: CW Or CCW

Key Word: Gear Motor

Place of Origin: Guangdong, China

Rated Speed: 7-1000RPM

Rated Power: 3W

Rated Current: 0.12-0.4A

Rated Torque: 0.1-30mN.m

Drawing

Sample

Application

Motors can be constructed in several different physical configurations. In the conventional (also known as inrunner) configuration, the permanent magnets are part of the radially center core. In the outrunner (or external-rotor) configuration, the radial-relationship between the coils and magnets is reversed. The stator coils in the outrunner configuration form the center core of the motor, while the permanent magnets spin within an overhanging rotor which surrounds the core.

Gear motors function as torque multipliers and speed reducers, requiring less motor power to drive a given load. The gear housing design, the gearing type, gear lubrication, and the specific mode of integration all affect the gearmotor performance.

Increasing the reduction ratio producesincreased torque. but there are limits to thestrength of the material, so if the starting torquefor the geared motor exceeds the guaranteedstrength, avoid locking the output shaft. When using belts or cams to transmit the torquefrom the output shaft, problems can occur to thePV value of the gear shaft material drasticallyreducing the life so due care is requiredAvoid press fitting components to the outputshaft.

We have different speeds for direct drive motors and the motors to be used with ourstandard spur gears. The reason for this is that we want to offer you high speed in caseof direct use as it is often required, and a low noise level of spur gears because that is often arequirement in today's silent industrial environments.

The Characteristics Of Gear Reducer

• gear reduction motor according to the national professional standard ZBJ19004 production technical requirements.
• space saving, reliable and durable, high overload capacity.
• low energy consumption, superior performance, reducer efficiency up to 95% or more.
• low vibration, low noise, high energy saving, the selection of high-quality steel material, steel cast iron box, gear surface through high-frequency heat treatment.
• after precision machining to ensure positioning accuracy, all these constitute the gear drive assembly of the gear motor configuration of various types of motors, forming a mechatronics, fully ensure the quality of product use characteristics.
• the product uses the series, modular design idea, has a wide range of adaptability, this series of products have a lot of motor combination installation, installation position and structure scheme, can be selected according to the actual needs of any speed and a variety of structural forms.
