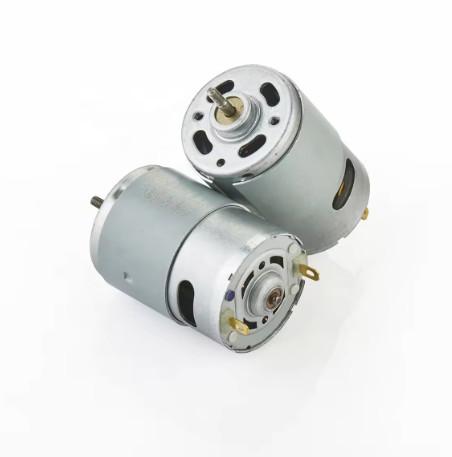

Hair Dryer Motor KG-540 18000rpm 24v Micro Dc Motor 36mm For Hair Dryer

Essential details

Efficiency: IE 4

Warranty: 3 Years

Model Number: KG-540

Rated Voltage: 24V

Rated Speed: 18000RPM

Rated Power: 3-115W

Continuous Current: Customizable

Place of Origin: Guangdong, China

Type: Brushless DC Motor

Application: Hair dryer

Rated Torque: Customizable

Lead time:

Product Description

Drawing

Sample

Our Adventage

1.With the best after-sale service to satisfy every customer.

2.With the good principle "quality and reputation always come first".

3.With the professional technical guidance and strong development ability.

4.With Advanced automatic machine and production line for ensure the high efficiency, excellent quality and favorable cost.

5.Our company is specialized in the production of motor with its own factory with 8 years of production experience.

Our company specialized in manufacturing in various of Universal motor, DC motor, Induction motor and Brushless motor that are widely applied to household appliances, intelligent home, electric tools, medical equipment etc.

6.Our products are widely applied in household appliances, office equipment, health-care and beauty-care facilities, medical equipment, toys, electronic tools, electronic commodities, automobile parts and automatic systems as well. We have professional teams working on R&D and QC. We also have adequate production facilities and advanced testing equipment, maintaining our quality managing system and advanced technology in motor industry. We have very good reputations from our customers.

Product Adventage

Brushless DC Motor can be constructed in several different physical configurations. In the conventional (also known as inrunner) configuration, the permanent magnets are part of the radially center core. In the outrunner (or external-rotor) configuration, the radial-relationship between the coils and magnets is reversed.

The stator coils in the outrunner configuration form the center core of the motor, while the permanent magnets spin within an overhanging rotor which surrounds the core. For this application, the inrunner configuration was selected. The rotor is in the center with the permanent magnets and that the stator contains the windings.

The starting-current setup in the circuit through the stator windings sets up a magnetomotive force (mmf) which is perpendicular to the main mmf set up by the permanent magnet. According to Fleming’s left-hand rule, a force is experienced by the armature conductors. As the armature conductors are in the stator, a reactive force develops a torque in the rotor. When this torque is more than the load torque and frictional torque, the motor begins rotating.

The process of removing current from one circuit and giving it to another circuit is known as commutation.

The phase current and developed torque in the Brushless DC Motor. In every case there are two phases that are contributing to positive torque and one phase contributing to zero torque. If the torque of each commutation interval is combined, the total torque is a contribution of two torques from two phases that are perfectly flat.
