24V,18V,12V Coreless DC Motor,18000-25000rpm,20mm diameter,32mm Length
24V,18V,12V Coreless DC Motor,18000-25000rpm,20mm diameter,32mm Length
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL2032AN-2419
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
24V
No load speed ±12% :
19339 rpm
No load current Max *150% :
90 mA
Max cont.torque :
3.6mN.m
Rated Speed :
17806 rpm
Rated current :
400mA
Rated Power :
6.7 W
Starting current :
4000mA
Stall Torque :
45mNm
Maximum Efficiency :
72 %
Terminal resistance ±12% :
6.0 Ω
Weight :
52.4 g
Description

24V,18V,12V Coreless DC Motor,18000-25000rpm,20mm diameter,32mm Length

Product introduction:

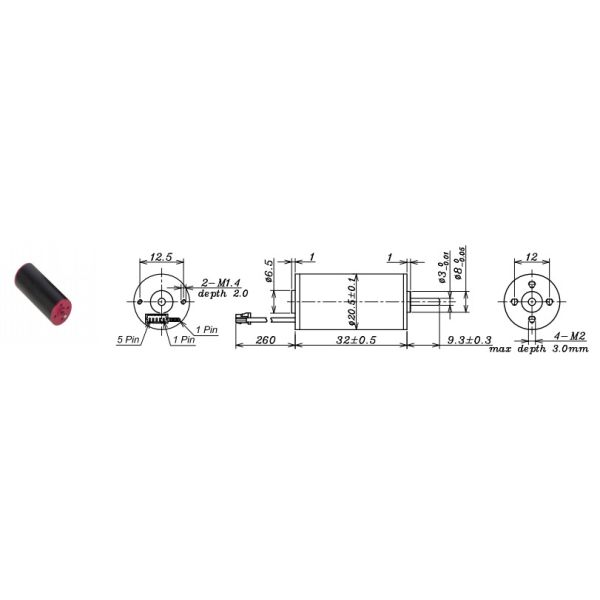

1.It's DC Brushless Motor. 20mm diameter.32mm Length .

2.No load speed ±12%: 19339rpm. No load current Max150%: 90mA .Maximum power output 22.9W. Terminal resistance ±12%: 6.0Ω.

3.Torque constant 11.6mN.m/A. Speed constant 824rpm/V.

4.Brushless motors can install the corresponding with planetarty gearbox and encoder

5.Weight :52.4g,24V,18V,12V

Product Details:

Motor Model AM-BL-2032AN-2419 Unit
Nominal voltage 24 V
No load speed ±12% 19339 rpm
No load current Max150% 90 mA
Max cont.torque 3.6 mN.m
Rated Speed 17806 rpm
Rated Current 400 mA
Rated Power 6.7 W
Starting current 4000 mA
Stall Torque 45 Nm
Maximum power output 22.9 W
Maximum Efficiency 72 %
Terminal resistance ±12% 6.0 Ω
Inductance ( 1KHz ) 0.47 mH
Mechanical time constant 3.1 ms
Moment of inertia 0.69 gcm²
Torque constant 11.6 mN.m / A
Speed constant 824 rpm / V
Speed / torque gradient 427.0 rpm / mN.m
Weight 52.4 g

24V,18V,12V Coreless DC Motor,18000-25000rpm,20mm diameter,32mm Length

24V,18V,12V Coreless DC Motor,18000-25000rpm,20mm diameter,32mm Length

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

24V,18V,12V Coreless DC Motor,18000-25000rpm,20mm diameter,32mm Length

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
