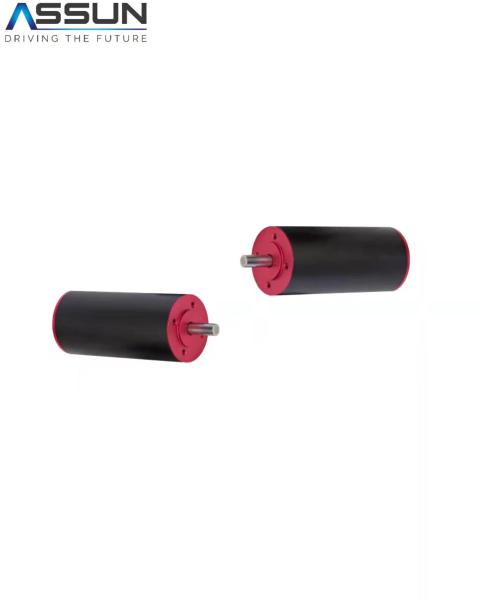

Brushless high power DC motor 48V36V24V 60mm length..6800-1100rpm 40mm diameter
Brushless high power DC motor 48V36V24V 60mm length..6800-1100rpm 40mm diameter
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL4060BF-4807
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
48V
No load speed ±12% :
7076 rpm
No load current Max *150% :
146 mA
Max cont.torque :
191.42 mN.m
Rated Speed :
6530 rpm
Rated current :
3100mA
Rated Power :
130.89 W
Starting current :
40336mA
Stall Torque :
2614 mN.m
Maximum Efficiency :
88.3%
Terminal resistance ±12% :
1.82Ω
Weight :
356.6g
Description

Product Description:

Brushless high power DC motor 48V36V24V 60mm length..6800-1100rpm 40mm diameter

Product introduction:

1.Length 60mm.diameter 40mm.High power DC Coreless Motor,6800-1100rpm.48V36V24V.

2. No load speed ±12%: 7076rpm. No load current Max150%: 146mA .Maximum power output 484.0W. Terminal resistance ±12%: 1.82Ω.

3.Torque constant 64.8mN.m/A. Speed constant 147rpm/V, Speed / torque gradient 2.72rpm/ V.

4. High temperature DC Coreless motors can install the corresponding with encoder and planetarty gearbox.

5. Maximum winding temperature: 155℃,Ambient temperatue range : -30 to 66℃.

6.Weight :356.6g.Motor thermal resistance : 5.65K/W.

Product Details:

Motor Model AM-BL4060BF-4807 Unit
Nominal voltage 48 V
No load speed ±12% 7076 rpm
No load current Max150% 146 mA
Max cont.torque 191.42 mN.m
Rated Speed 6530 rpm
Rated Current 3100 mA
Rated Power 130.89 W
Starting current 40336 mA
Stall Torque 2614 mN.m
Maximum power output 484 W
Maximum Efficiency 88.3 %
Terminal resistance ±12% 1.82 Ω
Motor thermal resistance 5.65 K/W
Mechanical time constant 2.45 ms
Moment of inertia 86.56 gcm²
Torque constant 64.8 mN.m / A
Speed constant 147 rpm / V
Speed / torque gradient 2.72 rpm / mN.m
Weight 356.6 g

Brushless high power DC motor 48V36V24V 60mm length..6800-1100rpm 40mm diameter

Brushless high power DC motor 48V36V24V 60mm length..6800-1100rpm 40mm diameter

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

Brushless high power DC motor 48V36V24V 60mm length..6800-1100rpm 40mm diameter

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

Brushless high power DC motor 48V36V24V 60mm length..6800-1100rpm 40mm diameter

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
