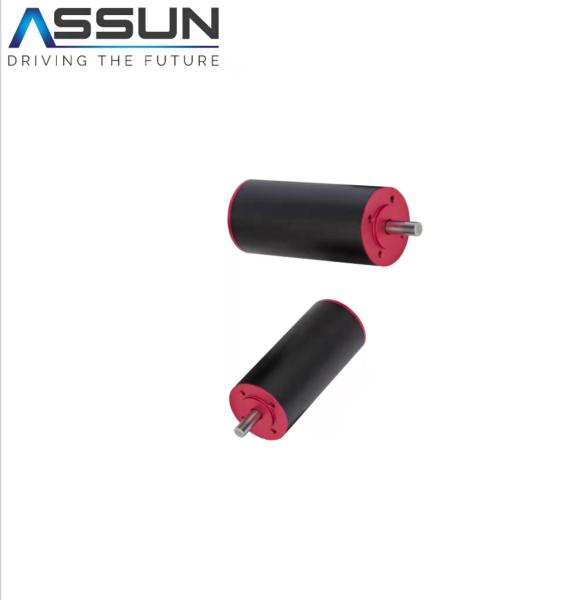

18V,24V,12V DC Coreless Motor,32mm Length,20mm diameter,18000-25000rpm
18V,24V,12V DC Coreless Motor,32mm Length,20mm diameter,18000-25000rpm
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL2032AN-1822
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
18V
No load speed ±12% :
22265rpm
No load current Max *150% :
120mA
Max cont.torque :
2.9 mN.m
Rated Speed :
21080 rpm
Rated current :
500 mA
Rated Power :
6.4 W
Starting current :
7258mA
Stall Torque :
54 Nm
Maximum Efficiency :
76%
Terminal resistance ±12% :
2.48 Ω
Weight :
51.8g
Description

18V,24V,12V DC Coreless Motor,32mm Length,20mm diameter,18000-25000rpm

Product introduction:

1.It's DC Brushless Motor. 20mm diameter.32mm Length .12V,18V,24V

2.No load speed ±12%: 22265 rpm. No load current Max150%: 120mA .Maximum power output 31.6W. Terminal resistance ±12%: 2.48Ω.

3.Torque constant 7.6mN.m/A. Speed constant 1258rpm/V.

4.Brushless motors can install the corresponding with encoder and planetarty gearbox

5.Weight :51.8g

Product Details:

Motor Model AM-BL-2032AN-1822 Unit
Nominal voltage 18 V
No load speed ±12% 22265 rpm
No load current Max150% 120 mA
Max cont.torque 2.9 mN.m
Rated Speed 21080 rpm
Rated Current 500 mA
Rated Power 6.4 W
Starting current 7258 mA
Stall Torque 54 Nm
Maximum power output 31.6 W
Maximum Efficiency 76 %
Terminal resistance ±12% 2.48 Ω
Inductance ( 1KHz ) 0.19 mH
Mechanical time constant 3.0 ms
Moment of inertia 0.69 gcm²
Torque constant 7.6 mN.m / A
Speed constant 1258 rpm / V
Speed / torque gradient 410.8 rpm / mN.m
Weight 51.8 g

18V,24V,12V DC Coreless Motor,32mm Length,20mm diameter,18000-25000rpm

18V,24V,12V DC Coreless Motor,32mm Length,20mm diameter,18000-25000rpm

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

18V,24V,12V DC Coreless Motor,32mm Length,20mm diameter,18000-25000rpm

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
