DC Coreless Metal Brush motor Coreless DC Brush Motor D16mm L42mm 6V12V24V36V48V

Product Description:

Assun DC Brushed Motors are manufactured with coreless rotors for high efficiency, smooth operation and low inertia.These coreless brushed motors are perfect for applications with hogh efficiency and precision control needs.

Power rating from less than 1 watt to 150 watts. diameter from 16mm to 40mm, Assun DC brushed motors can be used for various DC drive systems. Graphite and metal brushes are to be chosen for different operation conditions.

Assun Metal Brush Series Coreless motors are manufactured with coreless rotors and metal brush commutators.The high efficiency and precision character of metal brushed coreless motor made it perfect for energy critical and fast responding applications such as medical tools and robotic actuators.

Product introduction:

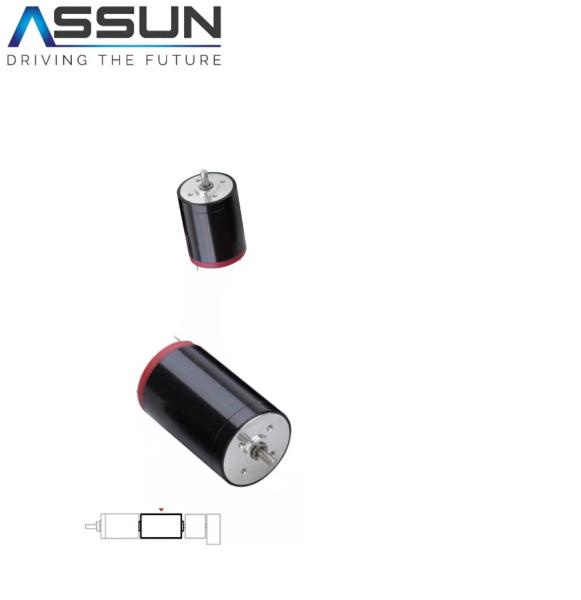

AM-CL1642MAN-3609

1.Coreless Metal Brush DC motor diameter 16mm. length 42mm. 36V.

2.Nominal voltage : 36V. No load speed ±12%: 9207 rpm.

3.No load current Max150% : 4.5 mA. Max cont.torque: 5.4mN.m. Rated Speed : 8090 rpm.

4.Rated Current: 150 mA. Rated Power: 4.6 W. Starting current : 1204 mA. Stall Torque : 45 mN.m.

5. Maximum power output : 10.8W. Maximum Efficiency : 88 %. Terminal resistance ±12% : 29.9Ω.

6.Weight : 38.5g.

7.DC Coreless Metal Brushed motor can install the corresponding with Encoder and Planetarty gearbox.

Product Details:

Recommended Gearbox:

Planetary Gearbox : AM-16GP. AM-20GP.

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.
