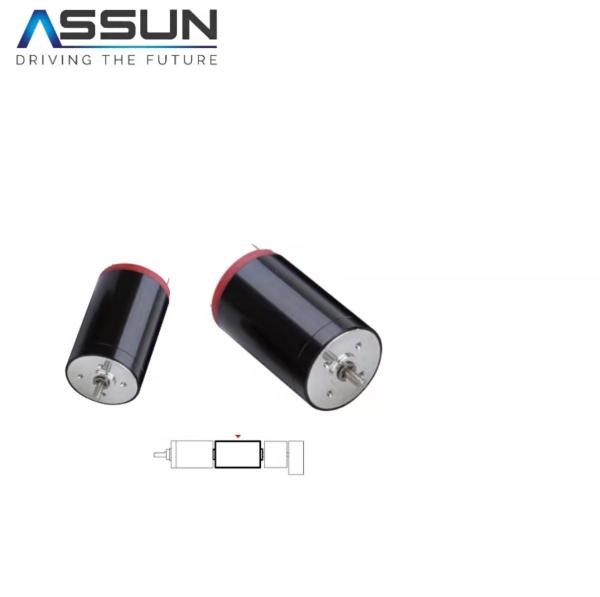

L: 32mm D: 25mm DC Coreless Metal BrushMotor Coreless Brush Metal Motor3V6V12V24V

Features:

Assun brush DC motor technology adopts a design based on Coreless rotor combined with rare metal or carbon copper commutation system and rare earth or aluminum nickel cobalt magnet. This motor has outstanding advantages and is suitable for high-performance drive and servo systems: low friction, low starting voltage, high efficiency, good heat dissipation and linear torque speed relationship. All these features are conducive to the use and simplification of servo circuit. Brush DC motor provides the best solution for all battery powered equipment that particularly needs high energy efficiency, and its low rotor inertia can provide excellent acceleration when used in incremental motion system.

AM-CL2532MAN-2405

1.DC Coreless Metal Brush motor diameter 25mm. length 32mm. 24V.

2.Nominal voltage : 24V. No load speed ±12%: 4850 rpm.

3.No load current Max150% : 9.5 mA. Max cont.torque: 7.5mN.m. Rated Speed : 3315 rpm.

4.Rated Current: 250 mA. Rated Power: 3.9 W. Starting current :769 mA. Stall Torque : 35mN.m.

5. Maximum power output : 4.5W. Maximum Efficiency : 79 %. Terminal resistance ±12% : 31.2Ω.

6.Weight : 72.2g.

7.DC Coreless Metal Brushed motor can install the corresponding with Encoder and Planetarty gearbox.

Product Details:

Recommended Gearbox:

Planetary Gearbox : AM-24GP. AM-28GP.

Recommended Encoder :

Encoder S : AM-EN2211S***

2~3 Channels.

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
