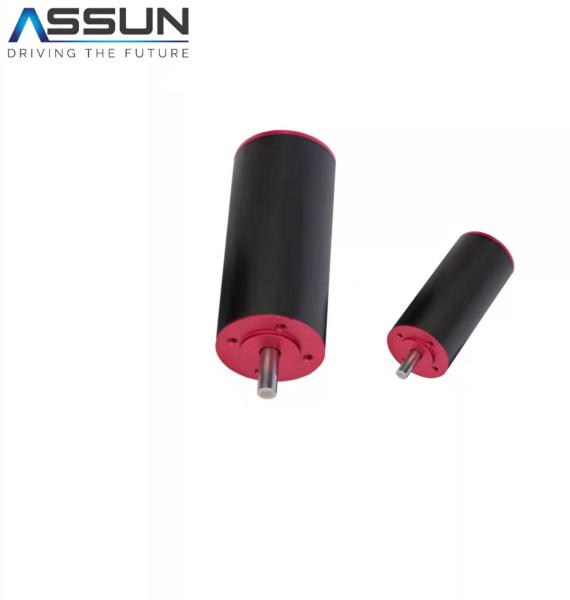

24V,36V,12V Brushless DC Motor,,20mm diameter,51mm Length,15000-25000rpm
24V,36V,12V Brushless DC Motor,,20mm diameter,51mm Length,15000-25000rpm
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL2051AN-2426
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
24V
No load speed ±12% :
25800 rpm
No load current Max *150% :
155 mA
Max cont.torque :
3.0 mN.m
Rated Speed :
25336 rpm
Rated current :
500mA
Rated Power :
8.1 W
Starting current :
19355mA
Stall Torque :
169mN.m
Maximum Efficiency :
83 %
Weight :
86.6g
Terminal resistance ±12% :
1.24Ω
Description

Product Description:

24V,36V,12V Brushless DC Motor,,20mm diameter,51mm Length,15000-25000rpm.

Product introduction:

1.It's DC Brushless Motor. 15000-25000rpm,20mm diameter.51mm Length.24V,36V,12V

2.No load speed ±12%: 25800rpm. No load current Max150%: 155mA .Maximum power output 114.3W. Terminal resistance ±12%: 1.24Ω.

3.Torque constant 7.2mN.m/A. Speed constant 1324rpm/V,DC 12V,36V,24V

4.Brushless motors can install the corresponding with planetarty gearbox and encoder

5.Weight :86.6g. Ambient temperatue range : -30 to 65 ℃.

Product Details:

Motor Model AM-BL-2051AN-2426 Unit
Nominal voltage 24 V
No load speed ±12% 25800 rpm
No load current Max150% 155 mA
Max cont.torque 3.0 mN.m
Rated Speed 25336 rpm
Rated Current 500 mA
Rated Power 8.1 W
Starting current 19355 mA
Stall Torque 169 mN.m
Maximum power output 114.3 W
Maximum Efficiency 83 %
Terminal resistance ±12% 1.24 Ω
Inductance ( 1KHz ) 0.1 mH
Mechanical time constant 2.3 ms
Moment of inertia 1.43 gcm²
Torque constant 8.8 mN.m / A
Speed constant 1084 rpm / V
Speed / torque gradient 152.6 rpm / mN.m
Weight 86.6 g

24V,36V,12V Brushless DC Motor,,20mm diameter,51mm Length,15000-25000rpm

24V,36V,12V Brushless DC Motor,,20mm diameter,51mm Length,15000-25000rpm

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
