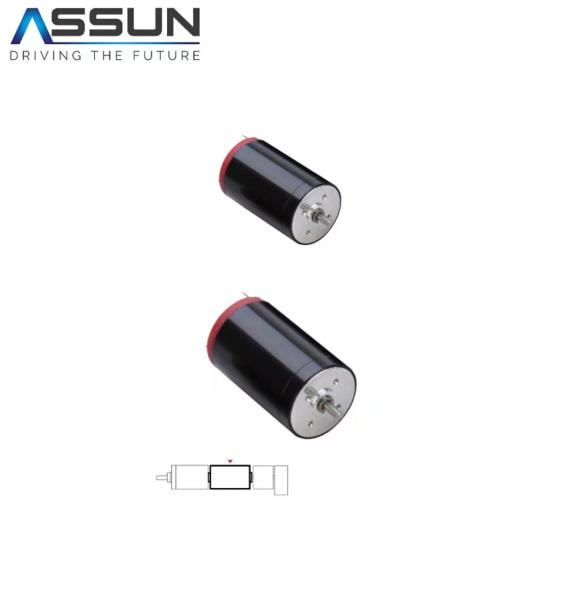

DC Coreless Brush Metal Motor.DC 3V6V12V24V Metal Brush Coreless Motor L32mmD25mm
DC Coreless Brush Metal Motor.DC 3V6V12V24V Metal Brush Coreless Motor L32mmD25mm
Specifications
Brand Name :
ASSUN
Model Number :
AM-CL2532MAN-1206
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Product name :
DC Coreless Metal Brushed Motor 3V6V12V24V
Diameter :
25mm
Length :
32mm
Nominal voltage :
12 V
No load speed ±12% :
6592 rpm
No load current Max *150% :
24 mA
Max cont.torque :
6.5 mN.m
Starting current :
2857mA
Stall Torque :
49 mN.m
Weight :
72.6g
Description

DC Coreless Brush Metal Motor.DC 3V6V12V24V Metal Brush Coreless Motor L:32mm D:25mm

Product introduction:

Assun DC Brushed Motors are runs stably, has good braking effect, fast response speed and large starting torque

Assun DC Brushed Motors are structure, neodymium magnet provides high performance, high power density, rare metal commutator, long brush life, compact design

AM-CL2532MAN-1206

1.DC Coreless Metal Brush motor diameter 25mm. length 32mm. 12V.

2.Nominal voltage : 12V. No load speed ±12%: 6592 rpm.

3.No load current Max150% : 24 mA. Max cont.torque: 6.5mN.m. Rated Speed : 5717 rpm.

4.Rated Current: 400 mA. Rated Power: 3.9 W. Starting current :2857 mA. Stall Torque : 49mN.m.

5. Maximum power output : 8.4W. Maximum Efficiency : 83 %. Terminal resistance ±12% : 4.2Ω.

6.Weight : 72.6g.

7.DC Coreless Metal Brushed motor can install the corresponding with Encoder and Planetarty gearbox.

Product Details:

Motor Model AM-CL2532MAN-1206 Unit
Nominal voltage 12 V
No load speed ±12% 6592 rpm
No load current Max150% 24 mA
Max cont.torque 6.5 mN.m
Rated Speed 5717 rpm
Rated Current 400 mA
Rated Power 3.9 W
Starting current 2857 mA
Stall Torque 49 mN.m
Maximum power output 8.4 W
Maximum Efficiency 83 %
Terminal resistance ±12% 4.2 Ω
Inductance (1KHz) 0.34 mH
Mechanical time constant 14.4 ms
Moment of inertia 10.2 gcm²
Torque constant 17.2 mN.m / A
Speed constant 554 rpm / V
Speed / torque gradient 135.0 rpm / mN.m
Weight 72.6 g

DC Coreless Brush Metal Motor.DC 3V6V12V24V Metal Brush Coreless Motor L32mmD25mm

DC Coreless Brush Metal Motor.DC 3V6V12V24V Metal Brush Coreless Motor L32mmD25mm

Recommended Gearbox:

Planetary Gearbox : AM-24GP. AM-28GP.

Recommended Encoder :

Encoder S : AM-EN2211S***

2~3 Channels.

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

DC Coreless Brush Metal Motor.DC 3V6V12V24V Metal Brush Coreless Motor L32mmD25mm

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

More information. please vist our website : www.assunmotor.com
