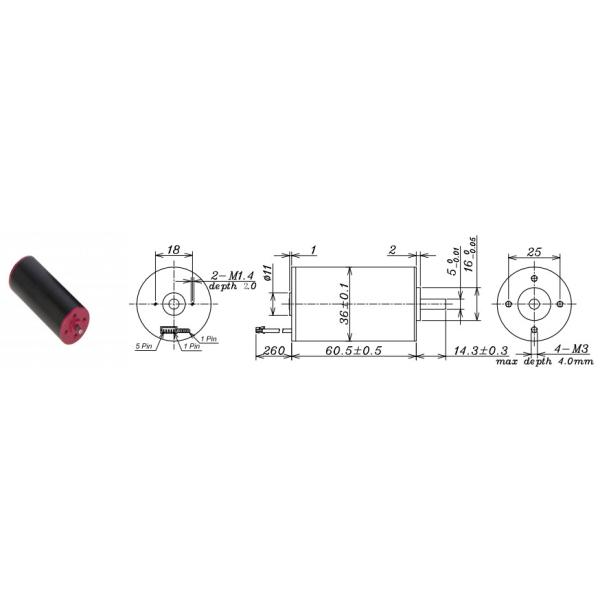

12V 24V 36V Brushless DC Coreless Motor 15000rpm 36mm Diameter 60mm Length
12V 24V 36V Brushless DC Coreless Motor 15000rpm 36mm Diameter 60mm Length
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL3660AN-1211
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
12 V
No load speed ±12% :
11200 rpm
No load current Max *150% :
320 mA
Max cont.torque :
47.6mN.m
Rated Speed :
10322 rpm
Rated current :
5000mA
Rated Power :
51.5W
Starting current :
60000 mA
Stall Torque :
607mN.m
Maximum Efficiency :
86 %
Terminal resistance ±12% :
0.2 Ω
Weight :
325.8g
Description

12V 24V 36V Brushless DC Coreless Motor 15000rpm 36mm Diameter 60mm Length

12V,24V,36V DC Brushless Motor,10000-15000rpm,36mm diameter,60mm Length

Product introduction:

1. It's DC Brushless Motor. 10000-15000rpm,36mm diameter.60mm Length,12V,24V,36V

2. No load speed ±12%: 11200rpm. No load current Max150%: 320mA .Maximum power output 178.1W. Terminal resistance ±12%: 0.2Ω.

3. Torque constant 10.2mN.m/A. Speed constant 938rpm/V,

4. Brushless motors can install the corresponding with planetarty gearbox and encoder

5. Weight :325.8g. Ambient temperatue range : -30 to 65 ℃.

Product Details:

Motor Model AM-BL-3660AN-1211 Unit
Nominal voltage 12 V
No load speed ±12% 11200 rpm
No load current Max150% 320 mA
Max cont.torque 47.6 mN.m
Rated Speed 10322 rpm
Rated Current 5000 mA
Rated Power 51.5 W
Starting current 60000 mA
Stall Torque 607 mN.m
Maximum power output 178.1 W
Maximum Efficiency 86 %
Terminal resistance ±12% 0.2 Ω
Inductance ( 1KHz ) 0.027 mH
Mechanical time constant 3.2 ms
Moment of inertia 16.75 gcm²
Torque constant 10.2 mN.m / A
Speed constant 938 rpm / V
Speed / torque gradient 18.4 rpm / mN.m
Weight 325.8 g

12V 24V 36V Brushless DC Coreless Motor 15000rpm 36mm Diameter 60mm Length

12V 24V 36V Brushless DC Coreless Motor 15000rpm 36mm Diameter 60mm Length

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

1. Why choose us?

* Passionate, experienced and highly-educated R & D and sales team;

* Reasonable price and reliable products, skillful and careful assembly;

* Strict quality assurance and quick aftersales service;

* Lifetime technical support, can come with customized setting.
