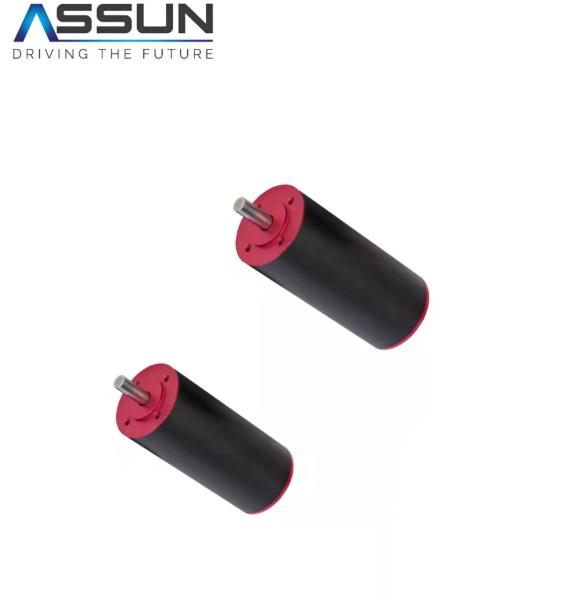

36V 24V 12V Coreless Brushless Motor 25000rpm 20mm Diameter
36V 24V 12V Coreless Brushless Motor 25000rpm 20mm Diameter
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL2051AN-3624
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
36V
No load speed ±12% :
24781 rpm
No load current Max *150% :
90 mA
Max cont.torque :
5.6mN.m
Rated Speed :
23899 rpm
Rated current :
500mA
Rated Power :
14.1 W
Starting current :
11613mA
Stall Torque :
159 mN.m
Maximum Efficiency :
83%
Terminal resistance ±12% :
3.1 Ω
Weight :
86.8 g
Description

36V 24V 12V Coreless Brushless Motor 25000rpm 20mm Diameter

36V,24V,12V Brushless DC Motor,15000-25000rpm,20mm diameter,51mm Length

Product introduction:

1. It's DC Brushless Motor. 15000-25000rpm,20mm diameter.51mm Length,36V,24V,12V

2. No load speed ±12%: 24781rpm. No load current Max150%: 90mA .Maximum power output 102.9W. Terminal resistance ±12%: 3.1Ω.

3. Torque constant 13.8mN.m/A. Speed constant 694rpm/V,

4. Brushless motors can install the corresponding with planetarty gearbox and encoder

5. Weight :86.8g. Ambient temperatue range : -30 to 65 ℃.

Product Details:

Motor Model AM-BL-2051AN-3619 Unit
Nominal voltage 36 V
No load speed ±12% 24781 rpm
No load current Max150% 90 mA
Max cont.torque 5.6 mN.m
Rated Speed 23899 rpm
Rated Current 500 mA
Rated Power 14.1 W
Starting current 11613 mA
Stall Torque 159 mN.m
Maximum power output 102.9 W
Maximum Efficiency 83 %
Terminal resistance ±12% 3.1 Ω
Inductance ( 1KHz ) 0.29 mH
Mechanical time constant 2.3 ms
Moment of inertia 1.43 gcm²
Torque constant 13.8 mN.m / A
Speed constant 694 rpm / V
Speed / torque gradient 156.2 rpm / mN.m
Weight 86.8 g

36V 24V 12V Coreless Brushless Motor 25000rpm 20mm Diameter

36V 24V 12V Coreless Brushless Motor 25000rpm 20mm Diameter

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
