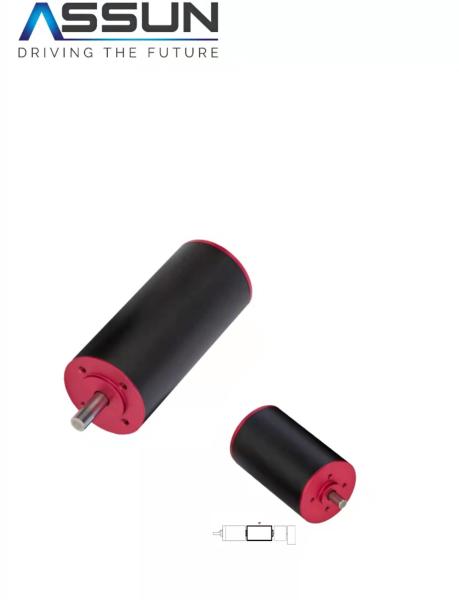

High power Brushless DC motor 36V48V24V 5500-10000rpm.diameter45mm length100mm
High power Brushless DC motor 36V48V24V 5500-10000rpm.diameter45mm length100mm
Specifications
Brand Name :
ASSUN
Model Number :
AM-BL45100BF-3608
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Nominal voltage :
36 V
No load speed ±12% :
8288 rpm
No load current Max *150% :
556 mA
Max cont.torque :
292.19mN.m
Rated Speed :
7938 rpm
Rated current :
7600mA
Rated Power :
1242.88 W
Starting current :
180000 mA
Stall Torque :
7466 mN.m
Maximum Efficiency :
89%
Terminal resistance ±12% :
0.2 Ω
Weight :
757.4 g
Description

Product Description:

High power Brushless DC motor 36V48V24V 5500-10000rpm.diameter45mm length100mm

Product introduction:

1.High power DC Brushless Motor,5500-10000rpm.36V48V24V..Length 100mm.diameter 45mm.

2.No load current Max150%: 556mA .Maximum power output:1620W. Terminal resistance ±12%: 0.2Ω.

3.Torque constant 41.48mN.m/A. Speed constant 230rpm/V, Speed / torque gradient 1.1rpm/ V.No load speed ±12%: 8288rpm.

4. High temperature DC Coreless motors can install the corresponding with encoder and planetarty gearbox.

5. Maximum winding temperature: 155℃,Ambient temperatue range : -30 to 66℃.

6.Weight :757.4g.Motor thermal resistance : 3.32K/W.

Product Details:

Motor Model AM-BL45100BF-3608 Unit
Nominal voltage 36 V
No load speed ±12% 8288 rpm
No load current Max150% 556 mA
Max cont.torque 292.19 mN.m
Rated Speed 7938 rpm
Rated Current 7600 mA
Rated Power 1242.88 W
Starting current 180000 mA
Stall Torque 7466 mN.m
Maximum power output 1620 W
Maximum Efficiency 89 %
Terminal resistance ±12% 0.2 Ω
Motor thermal resistance 3.32 K/W
Mechanical time constant 2.64 ms
Moment of inertia 227.17 gcm²
Torque constant 41.48 mN.m / A
Speed constant 230 rpm / V
Speed / torque gradient 1.1 rpm / mN.m
Weight 757.4 g

High power Brushless DC motor 36V48V24V 5500-10000rpm.diameter45mm length100mm

High power Brushless DC motor 36V48V24V 5500-10000rpm.diameter45mm length100mm

Appliation:

Assun Motor application of positive element brushless precision servo motor in intelligent equipment

High power Brushless DC motor 36V48V24V 5500-10000rpm.diameter45mm length100mm

Motor data tested at 25℃.Motor operation exceeding continuous limits will reduce life or result in damage.

At elevated ambient temperature.load current must be reduced.

High power Brushless DC motor 36V48V24V 5500-10000rpm.diameter45mm length100mm

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
