20 Bit Incremental Optical Rotary Encoder 11g Weight 16mm Diameter
20 Bit Incremental Optical Rotary Encoder 11g Weight 16mm Diameter
Specifications
Brand Name :
ASSUN
Model Number :
AM-EN1612T103 Series
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Diameter :
16mm
PPR/TURN :
360 720 1440
Max Channel :
3
Max Working Freq.(KHz) :
55 - 220
Weight :
11.0g
Description

Incremental Optical Rotary Encoder 11g Weight 16mm Diameter 20 Bit

Encoder,Incremental Encoder, Optical Encoder

ASSUN Encoders include incremental and absolute types.For incremental controller, there are modeles of electromagnetic and optical,and both offers wide range of resolution choices.For absolute encoder, customer can choose for single or multi turns and also different resolutions..

High precision(resolution) and high reliability encoders by Assun are perfect for precision DC drive feedback and play an important role in the precision control system.

AM-EN1612T103 Series:

1. AM-EN1612T103-360 . 2. AM-EN1612T103-720. 3. AM-EN1612T03-1440.

Product introduction:

Incremental Encoder, Optical Encoder, Encoder Series products diameter 16mm.Thickness: 12mm.

PPR / TURN : 360 / 720 / 1440. Max Channels : 3

Max Working Freq.(KHz) : 55~220 .

Weight : 11.0 g

Product Detail:

Parameters/ Models AM-EN1612T103-360 AM-EN1612T103-720 AM-EN1612T103-1440
Diameter 16 16 16
PPR / TURN 360 720 1440
Max Channels 3 3 3
Max Working Freq.(KHz) 55~220 55~220 55~220
Direction Signal no no no
Drive(Differential Output) yes yes yes

Product Information :

Technical Parameter Suitable for motor size Pin definition
Power Vcc 5V±5% Suitable for shaft diameter 2.0 / 3.0 1. NC 2. VCC
Vcc=5.0V Signal ISL32179 Suitable for shaft length 5.2~5.5 3. GND 4.NC
Operating Temperature -25-85℃ Suitable for boss diameter 6.45~6.5 5.A- 6. A+
Inertia(max) 0.06 g.cm² Suitable for boss thickness Maximum 1.0 7.B- 8. B+
Output Current. each channel 20mA (max) Code wheel spacing 0.8~1.1 9. Z- 10.Z+

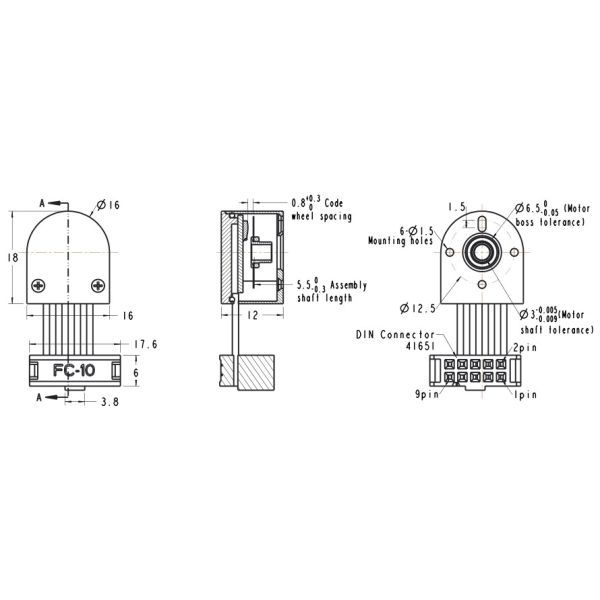

Weight 11.0g Other fixed size Drawing

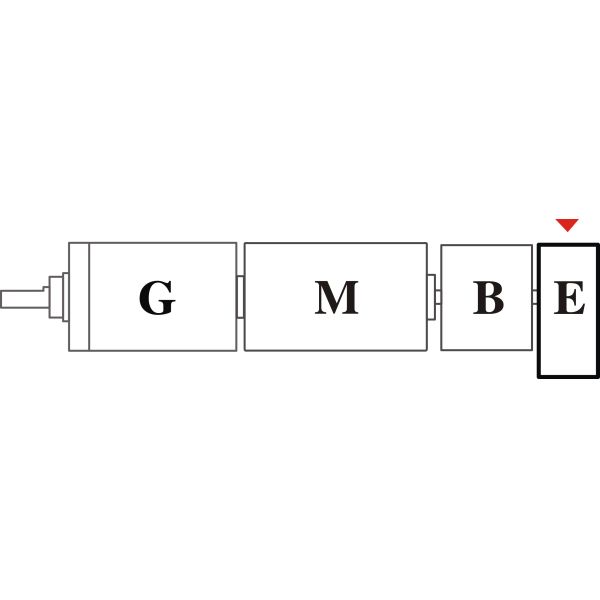

Product Combiniation Scheme :

20 Bit Incremental Optical Rotary Encoder 11g Weight 16mm Diameter

20 Bit Incremental Optical Rotary Encoder 11g Weight 16mm Diameter

Recommended Gearbox:

Planetary gearbox: AM-16GP. AM-20GP. AM-24GP

Recommended Motor :

Brushless Motor:AM-BL16** . AM-BL20**

.

Remarks: Clients can choose gearbox and motor to match with this encoder.

Application:

Application of Assun Encoder in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose motor.etc.

20 Bit Incremental Optical Rotary Encoder 11g Weight 16mm Diameter

Attention :

1. Non-professional personnel are strictly prohibited to operation.

2. Do not remove and change the electrical wire by yourself to avoid causing damage to the encoder.

3.When installation, prevent static damage to the encoder.

20 Bit Incremental Optical Rotary Encoder 11g Weight 16mm Diameter

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.

More information. please vist our website : www.assunmotor.com
