7.5W Miniature Electromagnetic Brake 42mm Diameter 35mm Thickness
7.5W Miniature Electromagnetic Brake 42mm Diameter 35mm Thickness
Specifications
Brand Name :
ASSUN
Model Number :
AM-BK4235LE-2410
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Static friction torque :
1.0 N.M
Rated voltage :
24 V
Power :
7.5 W
Temp rating :
120 ℃
Maximum speed :
8000 rpm
Moment of inertia :
77.56 gcm²
Weight :
211.2 g
Description

Product Description:

Motor Brake,Mechanical Brake,Power off Brake.Electromagnetic.Motor Brake.Diameter 42mm. Thickness 35mm

Product introduction:

1.Power-off Brake can install the corresponding with encoder and brushless / brushed moter.

2.Static friction tourque 1.0N.M Ratd voltage :24V Power :7.5W

3.Temperature Rating : 120℃ Max speed : 8000 rpm Moment of inertia : 77.56g.cm²

4. Weight :211.2g life time : 100000times. Thermal Resistance : 12.6K/W

5. Thermal time Constant: 908s Coil Inductance : 60.9mH. Electrical Time Constant 1.1ms.

6.Operating Environment Tenperature: -25~55℃.

7.Motor Brake,Mechanical Brake,Power off Brake.Electromagnetic.Motor Brake. Diameter 42mm. Thickness 35mm.

Product Detail:

Parameters / Models AM-BK4235LE-2410 UNIT
Static friction tourque 1.0 N.M
Ratd voltage 24 V
Power 7.5 W
Temperature Rating 120 ℃
Max speed 8000 rpm
Moment of inertia 77.56 g.cm²
Weight 211.2 g
life time 100000 times
Thermal Resistance 12.6 K/W
Thermal time Constant 908 S
Coil Inductance 60.9 mH
Electrical Time Constant 1.1 ms
Operating Environment Tenperature -25~55 ℃

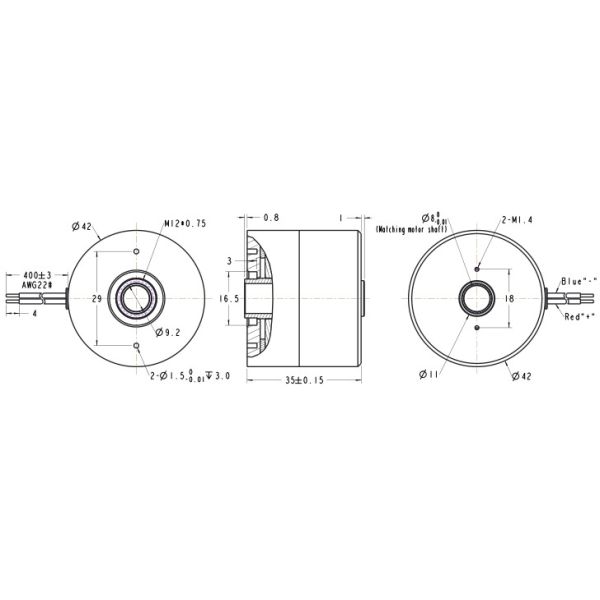

7.5W Miniature Electromagnetic Brake 42mm Diameter 35mm Thickness

7.5W Miniature Electromagnetic Brake 42mm Diameter 35mm Thickness

Special Features:

1.Fixed accuracy. no backlash.

2.Small size and high torque.

3.Low noise.high speed.

4.Fast response and long life.

7.5W Miniature Electromagnetic Brake 42mm Diameter 35mm Thickness

Recommended Motor :

Brushless Motor : AM-BL/D45*** AM-BL65***

Recommended Encoder :

Encoder S : AM-EN2211S*** 2~3 Channels.

Encoder T : AM-EN3612T*** 2~3 Channels.

Application:

Application of Assun Brake in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose

motor.etc.

7.5W Miniature Electromagnetic Brake 42mm Diameter 35mm Thickness

7.5W Miniature Electromagnetic Brake 42mm Diameter 35mm Thickness

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
