1.5N.M DC Motor Brake Electromagnetic 353g Weight 8.1K/W Thermal Resistance
1.5N.M DC Motor Brake Electromagnetic 353g Weight 8.1K/W Thermal Resistance
Specifications
Brand Name :
ASSUN
Model Number :
AM-BK5039LE-2415
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Static friction torque :
1.5 N.M
Rated voltage :
24 V
Power :
12.5 W
Temp rating :
120 ℃
Maximum speed :
8000 rpm
Moment of inertia :
154.8 gcm²
Weight :
353 g
Description

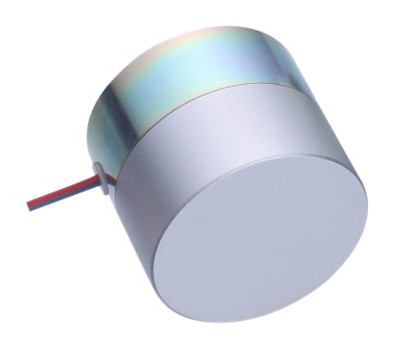

Mechanical Brake,Power off Brake..Motor Brake.Electromagnetic brake.Diameter 50mm. Thickness 39mm

Product introduction:

1.Power-off Brake can install the corresponding with encoder and brushless / brushed moter.

2.Static friction tourque 1.5N.M Ratd voltage :24V Power :12.5W

3.Temperature Rating : 120℃ Max speed : 8000 rpm Moment of inertia : 154.8g.cm²

4. Weight :353g life time : 100000times. Thermal Resistance : 8.1K/W

5. Thermal time Constant: 1076s Coil Inductance : 78.8mH. Electrical Time Constant 2.5ms.

6.Operating Environment Tenperature: -25~55℃.Diameter 50mm. Thickness 39mm.

7.Motor Brake,Mechanical Brake,Power off Brake.Electromagnetic.Motor Brake.

Product Detail:

Parameters / Models AM-BK5039LE-2415 UNIT
Static friction tourque 1.5 N.M
Ratd voltage 24 V
Power 12.5 W
Temperature Rating 120 ℃
Max speed 8000 rpm
Moment of inertia 154.8 g.cm²
Weight 353 g
life time 100000 times
Thermal Resistance 8.1 K/W
Thermal time Constant 1076 S
Coil Inductance 78.8 mH
Electrical Time Constant 2.5 ms
Operating Environment Tenperature -25~55 ℃

1.5N.M DC Motor Brake Electromagnetic 353g Weight 8.1K/W Thermal Resistance

1.5N.M DC Motor Brake Electromagnetic 353g Weight 8.1K/W Thermal Resistance

Special Features:

1.Fixed accuracy. no backlash.

2.Small size and high torque.

3.Low noise.high speed.

4.Fast response and long life.

1.5N.M DC Motor Brake Electromagnetic 353g Weight 8.1K/W Thermal Resistance

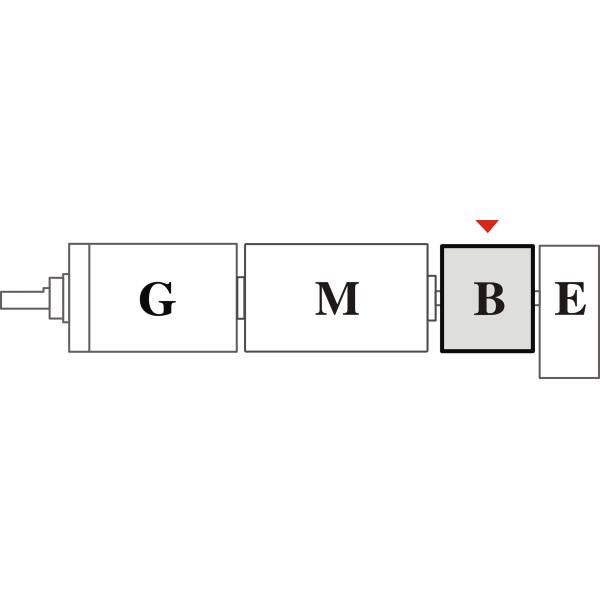

Recommended Motor :

Brushless Motor : AM-BL65***

Recommended Encoder :

Encoder S : AM-EN2211S*** 2~3 Channels.

Encoder T : AM-EN3612T*** 2~3 Channels.

Application:

Application of Assun Brake in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose

motor.etc.

1.5N.M DC Motor Brake Electromagnetic 353g Weight 8.1K/W Thermal Resistance

1.5N.M DC Motor Brake Electromagnetic 353g Weight 8.1K/W Thermal Resistance

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
