24V Electromagnetic Clutch Brake 13.2K/W Thermal Resistance 42mm Diameter
24V Electromagnetic Clutch Brake 13.2K/W Thermal Resistance 42mm Diameter
Specifications
Brand Name :
ASSUN
Model Number :
AM-BK4228GE-2410
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1-10pcs
Price :
Negotiated
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300000/Month
Delivery Time :
5-15 work days
Packaging Details :
Cartonbox
Static friction torque :
1.0 N.M
Rated voltage :
24 V
Power :
10.7 W
Temp rating :
120 ℃
Maximum speed :
8000 rpm
Moment of inertia :
77.56 gcm²
Weight :
162 g
Description

Electromagnetic Brake,Motor Brake,Power-on Brake.Mechanical Brake D42mm.L 28mm

Product introduction:

1.Electromagnetic Brake,Motor Brake,Power-on Brake.Mechanical Brake.Diameter 42mm. Thickness 28mm

2.Static friction tourque 1.0N.M Ratd voltage :24V Power :10.7W

3.Temperature Rating : 120℃ Max speed : 8000 rpm Moment of inertia :77.56 g.cm²

4. Weight :162 g life time : 100002 times. Thermal Resistance : 13.2K/W

5. Thermal time Constant: 789s Coil Inductance : 50.2mH. Electrical Time Constant 0.9ms.

6.Power-on Brake can install the corresponding with encoder and brushless / brushed moter.

7.Operating Environment Tenperature: -25~55℃.

Product Detail:

Parameters / Models AM-BK4228GE-2410 UNIT
Static friction tourque 1.0 N.M
Ratd voltage 24 V
Power 10.7 W
Temperature Rating 120 ℃
Max speed 8000 rpm
Moment of inertia 77.56 g.cm²
Weight 162 g
life time 100000 times
Thermal Resistance 13.2 K/W
Thermal time Constant 789 S
Coil Inductance 50.2 mH
Electrical Time Constant 0.9 ms
Operating Environment Tenperature -30~55 ℃

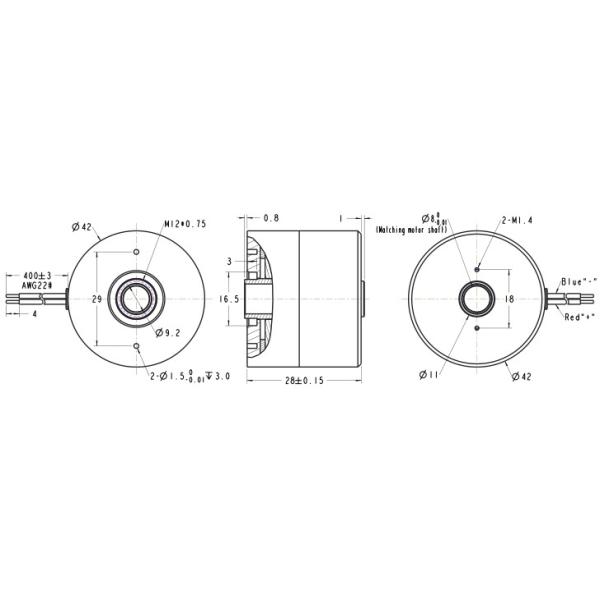

24V Electromagnetic Clutch Brake 13.2K/W Thermal Resistance 42mm Diameter

24V Electromagnetic Clutch Brake 13.2K/W Thermal Resistance 42mm Diameter

Special Features:

1.Fixed accuracy. no backlash.

2.Small size and high torque.

3.Low noise.high speed.

4.Fast response and long life.

24V Electromagnetic Clutch Brake 13.2K/W Thermal Resistance 42mm Diameter

Recommended Motor :

Brushless Motor : AM-BL/D45*** AM-BL65***

Recommended Encoder :

Encoder S : AM-EN2211S*** 2~3 Channels.

Encoder T : AM-EN3612T*** 2~3 Channels.

Application:

Application of Assun Brake in intelligent equipment. Robotic brake. Z-axis brake. Servo motor static braking. General purpose

motor.etc.

24V Electromagnetic Clutch Brake 13.2K/W Thermal Resistance 42mm Diameter

24V Electromagnetic Clutch Brake 13.2K/W Thermal Resistance 42mm Diameter

Service idea :

We can search for qualified products according to the required specifications (size, torque, revolutions, etc.) of gearbox, DC motor and reducer proposed by customers. The products searched are just one example of a rich product lineup, and there are many products that have not been published. At the same time, we also undertake special product design and OEM development. For relevant matters, please contact the business department of our company.
